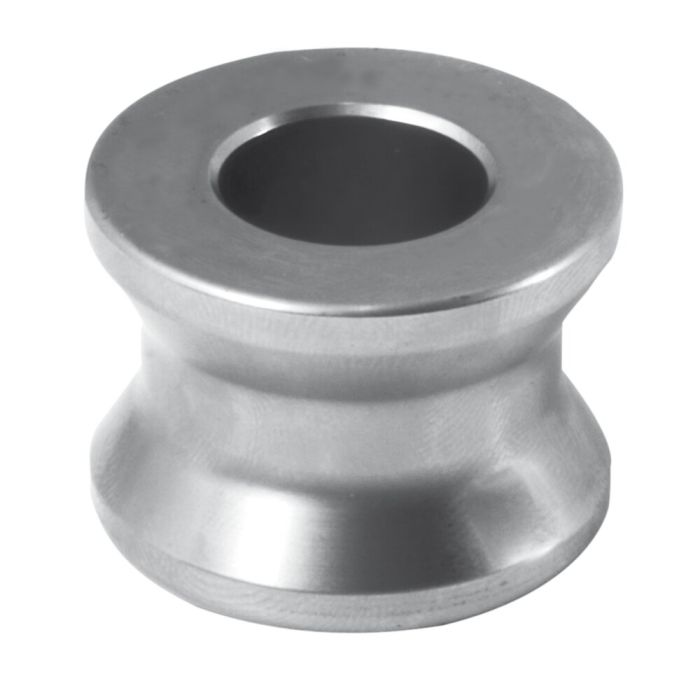

Compensation pull-stud
For hydraulic and pneumatic clamping modules, size 20
Order no.
305912
Note:
The compensation pull-stud is supported by bearings to make it radially mobile and is used when large distance and angle tolerances have to be compensated between the pull-stud holes.
The pull-stud only has a holding function and does not absorb a lateral load.
| Order no. | 305912 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Hydraulic, Pneumatic |
| Size clamping module | 20 |
