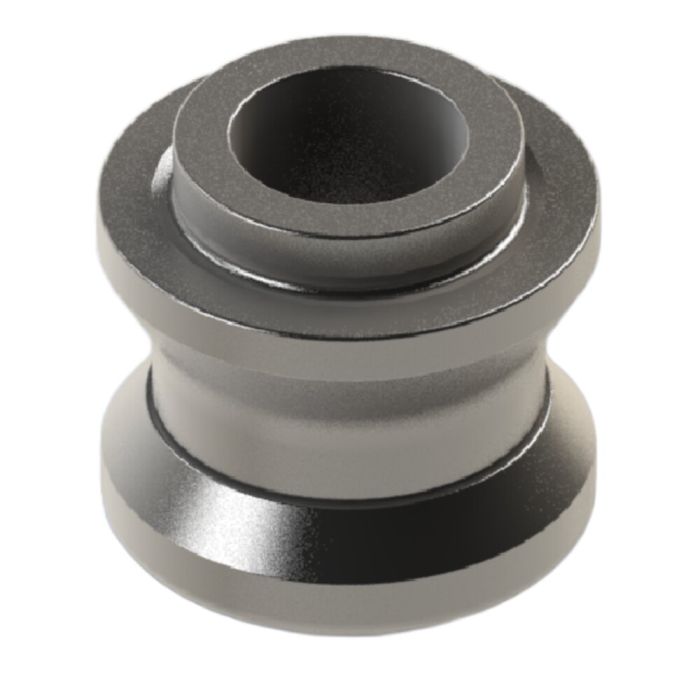

Compensation pull-stud
For hydraulic and pneumatic clamping modules size 5
Order no.
571109
Note:
The compensation pull-stud is supported by bearings so that it is radially mobile and is used when large distance tolerances between the pull-stud holes have to be compensated. The pull-stud has only a holding function and does not take on any lateral loads.
| Order no. | 571109 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Hydraulic, Pneumatic |
| Size clamping module | 5 |
