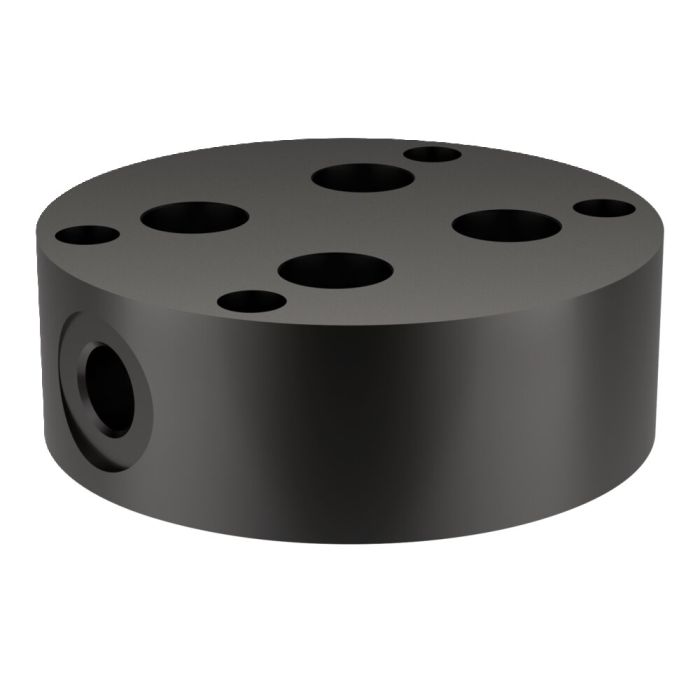

Connection plate for centring clamp
For pipeline connection, for articles 6974-X098; 6974-X109 and 6974-X119
Order no.
329144
Design:
Tempering steel, TEM-deburred and phosphatised.
Application:
If the centring clamp is fastened from above and oil is supplied through pipes.
Order no. 329011 for items 6974-X054; 6974-X061 and 6974-X068
Order no. 329037 for items 6974-X076; 6974-X083 and 6974-X090
Order no. 329144 for items 6974-X098; 6974-X109 and 6974-X119
| Order no. | 329144 |
|---|---|
| Product type | Connection plates |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Centring clamp MAXI with two clamping points Nr. 329029 Max. clamping force 28 kN, stroke 6,9 mm, clamping Ø 98-109 mm
- Centring clamp MAXI with two clamping points Nr. 329060 Max. clamping force 28 kN, stroke 6,9 mm, clamping Ø 109-120 mm
- Centring clamp MAXI with two clamping points Nr. 329102 Max. clamping force 28 kN, stroke 6,9 mm, clamping Ø 119-130 mm
- Centring clamp MAXI with three clamping points Nr. 329003 Max. clamping force 28 kN, stroke 6,9 mm, clamping Ø 98-109 mm
- Centring clamp MAXI with three clamping points Nr. 329045 Max. clamping force 28 kN, stroke 6,9 mm, clamping Ø 109-120 mm
- Centring clamp MAXI with three clamping points Nr. 329086 Max. clamping force 28 kN, stroke 6,9 mm, clamping Ø 119-130 mm
Similar products
- Connection plate for centring clamp Nr. 329128 For O-ring connection, for articles 6974-X098; 6974-X109 and 6974-X119
