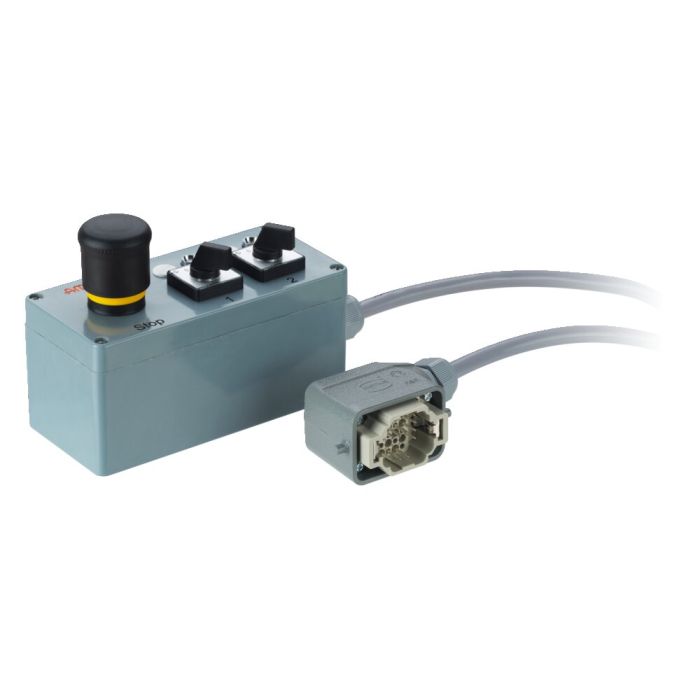

Control switch

Design:
Compact polyester housing with control elements, cable and coupling plug. Protection class IP65.

Application:
The control panel has a selector switch for each clamping circuit as well as a black STOP mushroom push button for stopping the pump and valves. During clamping and unclamping the corresponding valve is switched. In switch position 0, the valve is spring loaded and returns to the zero position. In external machine enabling, the signal „ready for operation“ and one pressure switch on each of the clamping points to be monitored should be integrated.

Note:
Monostable: For the control panels for units with monostable valves, the rotary switch has the “0 - Open” positions.
Bistable: For control panels for units with bistable valves, the rotary switch has the positions “clamping-0-unclamping-coupling”. In the coupling position both magnets are switched at the same time. The pump is switched off. In addition, the „Operation“ indicator lights on the unit go out and the readiness for external machine enabling is switched off.
