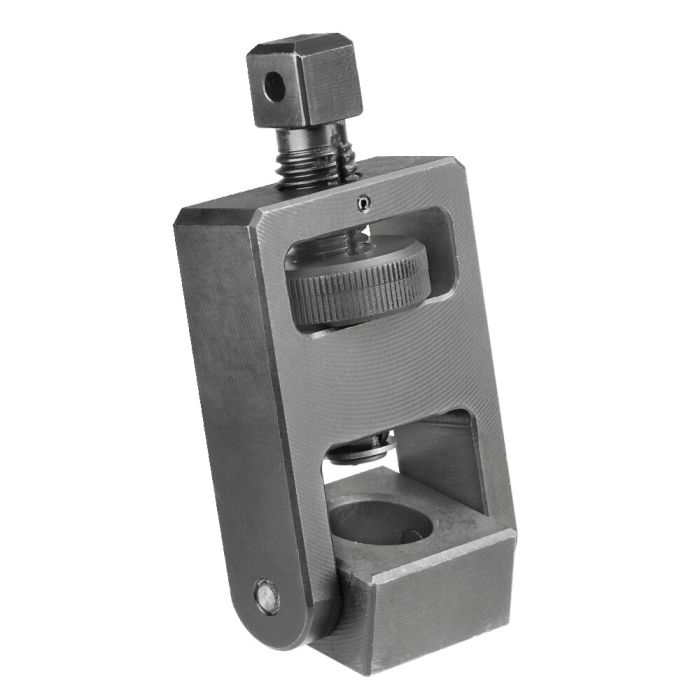

Counter catch

Size 12, slot 14, 16, 18

Order no.

374710

Order no.	Size	Slot	Screw G	S1 Stroke [mm]	Max. possible clamping force [kN]	Weight [g]
374710	16	14, 16, 18	M12	25,0	15	553
374728	16	18, 20, 22, 24	M16	36,0	40	1235
376632	24	28-36	M24	43,0	120	4145
376657	20	22-28	M20	43,5	75	4088

Order no.	A	b	C	E1	F1	H1 min.	H1 max.
374710	34	34	18	50	21	83	108,0
374728	37	44	25	64	29	110	146,0
376632	58	64	41	91	48	166	209,0
376657	58	64	41	91	48	162	205,5

Note:
Installation exclusively with the AMF fastening kit 6541 for counterholders.

More Information
Order no.	374710
Operating mode	Mechanical, Hydraulic
