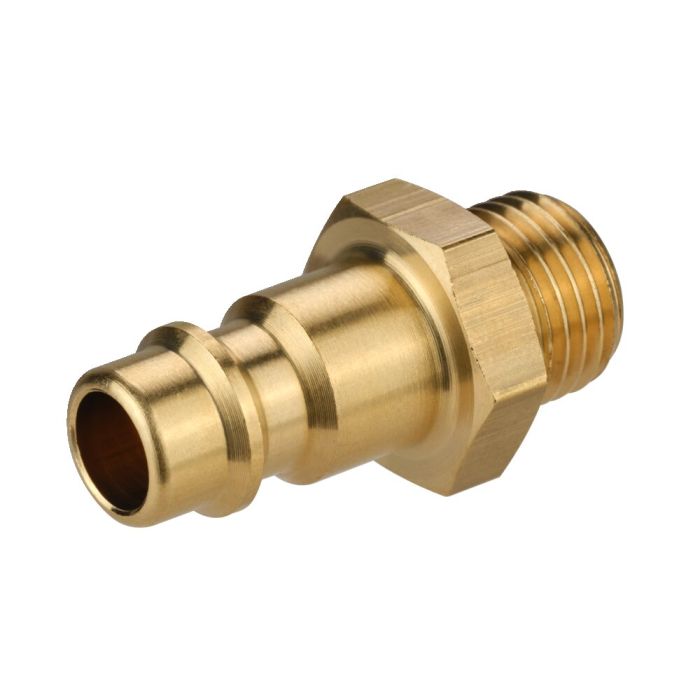

Coupling connector
For the pneumatic connection to pressure generators
Order no.
565059
Application:
Coupling connectors are used for the pneumatic connection to pressure generators, e.g. the pressure intensifier and are suitable for coupler sockets, size 4 (NW7).
Note:
The sealing rings are not supplied as standard and must be ordered separately.
G1/4: Order no. 69823
| Order no. | 565059 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
