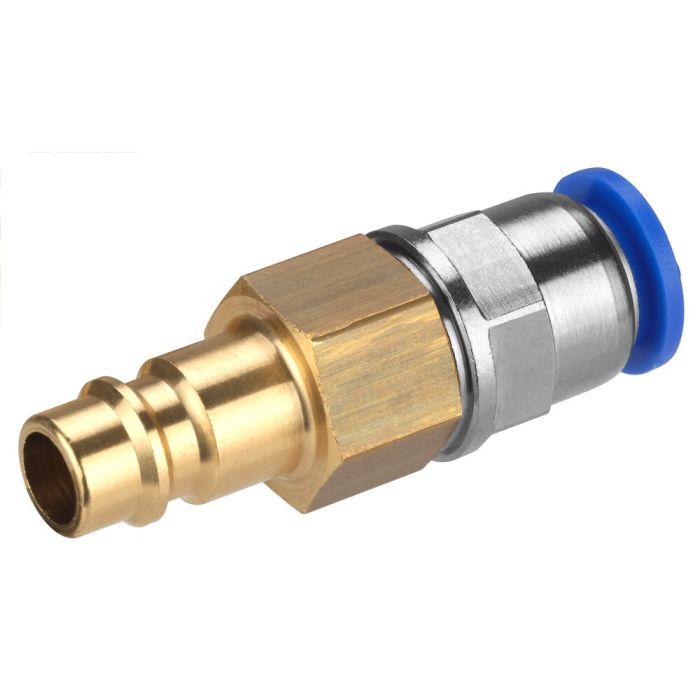

Coupling connector for quick-release coupling
NW 7.2, 2-part: coupling connector and coupling plug
Order no.
563560
Design:
Pressure regulating valve with coupling plugs for pneumatic hose 7800S-10.
Application:
Ballast for use on AMF vacuum clamping plates (7800BV/7800P/7800PD).
Note:
- Operation only with dried and filtered compressed air (compressed air in accordance with ISO8573-1: 2010)
- rotary knob with retainer
- pressure regulation range: 0.5 - 12 bar
- temperature of medium: -10°C ... 60°C
- installation position: any
Advantage:
The operating pressure for maximum vacuum on the vacuum clamping plate is kept constant.
| Order no. | 563560 |
|---|
