Max. clamping force 75 kN, clamping bolt DIN 40079 M24x400, height 45-215 mm, support extension 6312V M20x109
Order no.
375915
You do not have access to availabilities (Ampel). Please contact us!
with stud bolt DIN 6379, washer DIN 6340 and nut DIN 6330B. Infinitely adjustable, tempered, galvanised with captive compression piece and counter bearing.

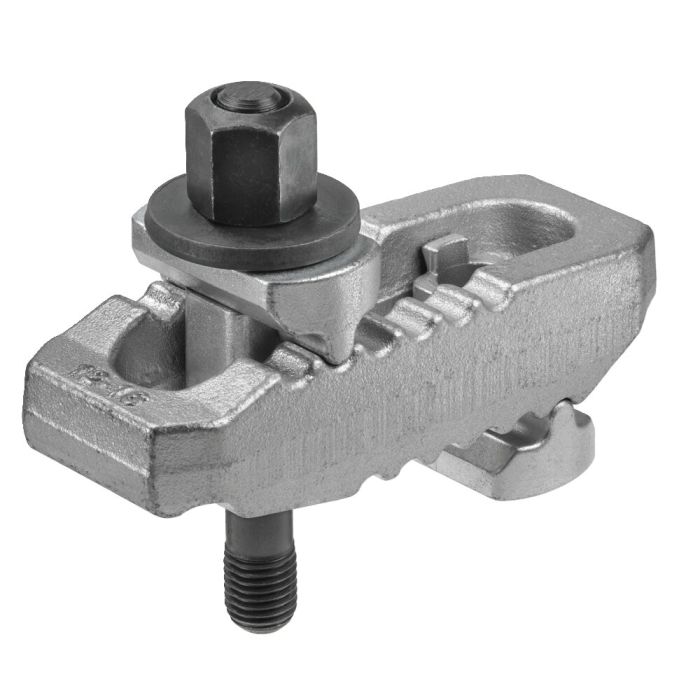

Application: The crocodile clamping claw is used for all clamping tasks using T-slots and threaded holes. Thrust piece and counter-bearing are connected permanently to the clamping jaw, and thus the crocodile is quickly ready to use. The clamping jaw features two ridges and can be turned around easily depending on the application. In this way, it is possible to cover all fields of application involving cutting and non-cutting processes (e.g. injection moulding and pressure forming).
Note: For missing dimensions, see no. 6312V.
Advantage: - Variable and fast adjustment option at a distance from the workpiece - Use in all areas involving cutting and non-cutting processes - Especially well-suited for use on injection moulding machines and presses - No additional supports needed to achieve the required clamping height - Thrust piece and counter-bearing are connected permanently to the clamping jaw - The crocodile can be extended easily for every clamping height.
* Specified clamping forces in optimal clamping position (smallest distance from the clamping screw to the clamping point). Clamping forces can vary depending clamping, strength class of the clamping screw and condition of the thread (lubrication).
