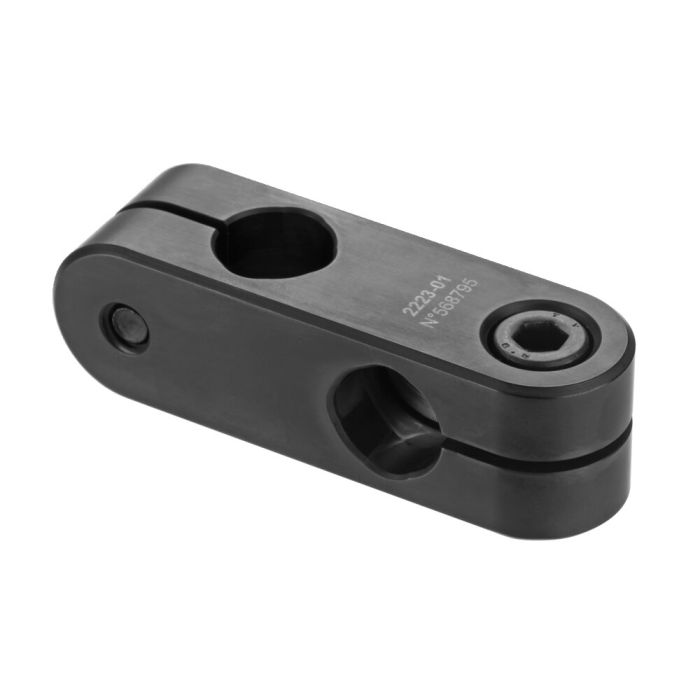

Cross connection
For 90° alignment and clamping of bolts and axes, dimensions 82 x 25 mm
Order no.
568795
Application:
Bolts and axes can be aligned by means of the cross union at a 90° angle to each other and adjusted and clamped continuously to each other.
Features:
- Hardened and burnished cross connection made of wear-resistant case-hardened steel
- When unclamped, the cross connection remains self-locking in position
Note:
Observe tightening torque.
| Order no. | 568795 |
|---|---|
| Product type | Verbindungselemente |
