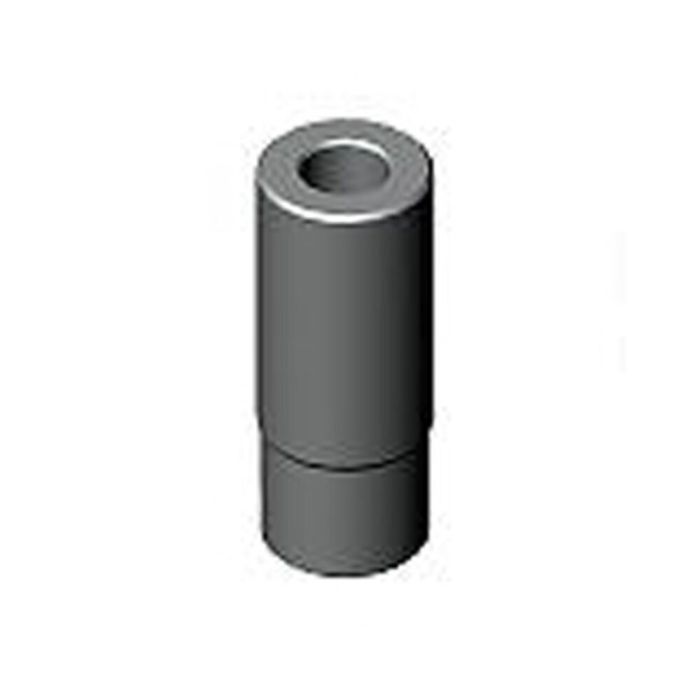

Cylindrical stop
Dist. fr. face to loc. holes 50 mm, support height 120 mm, dia. drilling 22 mm
| Order no. | Article no. | dia. D F7 | Dist. fr. face to loc. holes dia. D1 ±0.02 | Weight
[g] | Availability | Your Price |
| 78543 | 6363-12-016 | 16 | 40 | 825 | | |
| 78550 | 6363-16-016 | 22 | 50 | 1500 | | |
| | | | | | |
| Order no. | dia. D2
| H +1/+0.3 | E | F | L1 | dia. S | dia. S1 |
| 78543 | 38 | 100 | 10 | 70 | 30 | 13 | 20 |
| 78550 | 48 | 120 | 13 | 90 | 40 | 17 | 26 |
| | | | | | | |
More Information | Order no. | 78550 |
|---|
