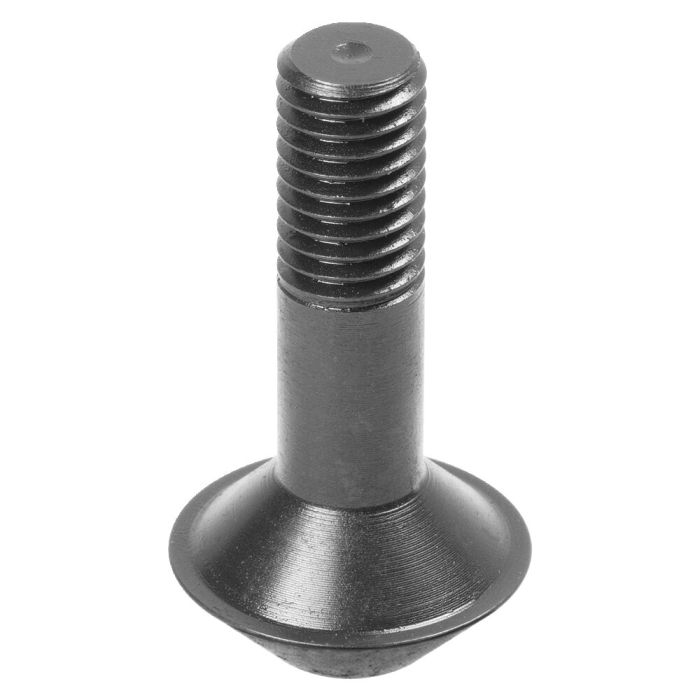

Engagement screw

Size 10, thread M10

Order no.

554927

Order no.	Size	Holding force [kN]	L	L1	m	SW	TORX	Weight [g]
303222	20	43,0	54	9	M12	8	-	70
303230	40	75,0	69	10	M16	14	-	130
303578	10	17,0	37	6	M8	6	-	25
306092	5	8,5	25	3,4	M6	5	-	10
554926	5	13,0	29	3,4	M8	-	T30	13
554927	10	25,0	41	6	M10	-	T45	32
554928	20	55,0	63	9,5	M16	-	T60	125
554929	40	105,0	73	11	M18	-	T70	195
559120	20	25,0	54	9	M10	8	-	63

On request:
Engagement screws in various lengths and materials (e.g. STAINLESS STEEL).

More Information
Order no.	554927
Produkttyp	Engagement screws
Betriebsart	Mechanical, Hydraulic, Pneumatic
Größe Spannmodule	10
Haltekraft [kN]	25
Weight [g]	32
