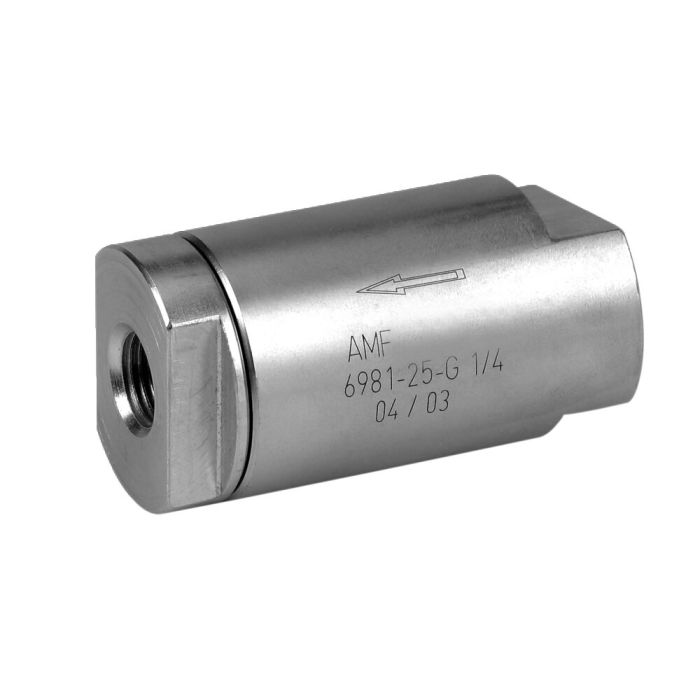

Filter

Design:
Body made of steel, zinc-plated. Filter insert of aluminium. Filter material of pleated metal fibre felt.

Application:
The Filters are used as on additional safety in order to protect the hydraulic componants in the oil circuit. The filter can be located direct in pipes, in front of distributors or in fittings.
For example:
- 10 µm input Intensifier
- 25 µm input valves
- 40 µm input pump units or hydraulic cylinder.

Note:
The smaller the filter that is chosen, the bigger the flow resistance will be.
The degree of filter soiling must be checked. Due to the design of the housing the exchange of the filter insert is simple. The direction of oil flow has to be considered. Can only be installed in P or T line. The installation position is optional. The volume flow for filter inserts is illustrated by the diagram for filter 6981.
Spare part:
Filter insert 10 microns, order no. 323683
Filter insert 25 microns, order no. 323709
Filter insert 40 microns, order no. 323725
