Filter, cartridge design
Max. operating pressure 250 bar, filteration 25 μm
Order no.
562203

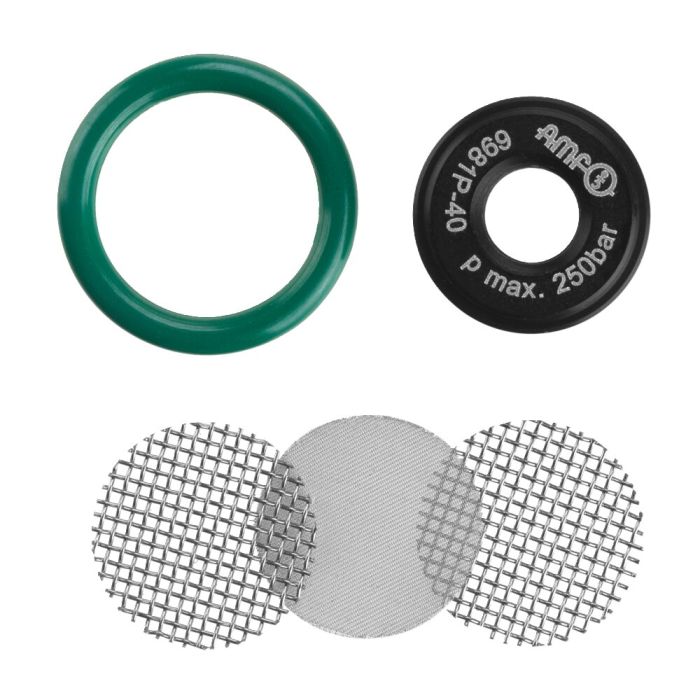

Design:
Filter sleeve made of aluminium, surfaces black anodised. Filter plates made of metal mesh.
Application:
For protecting actuators and valves in clamping devices against contamination in the hydraulic fluid.
Note:
Always mount the fine filter plate between the two coarse filter plates. Can also be built into fixtures. Filter is pressed in and cannot be reused.
The finer the filter selected, the greater the flow resistance.
| Order no. | 562203 |
|---|---|
| Max. operating pressure [bar] | 250 |
| Filtration [μm] | 25 |
| Oil port | Plug-in mounting |
