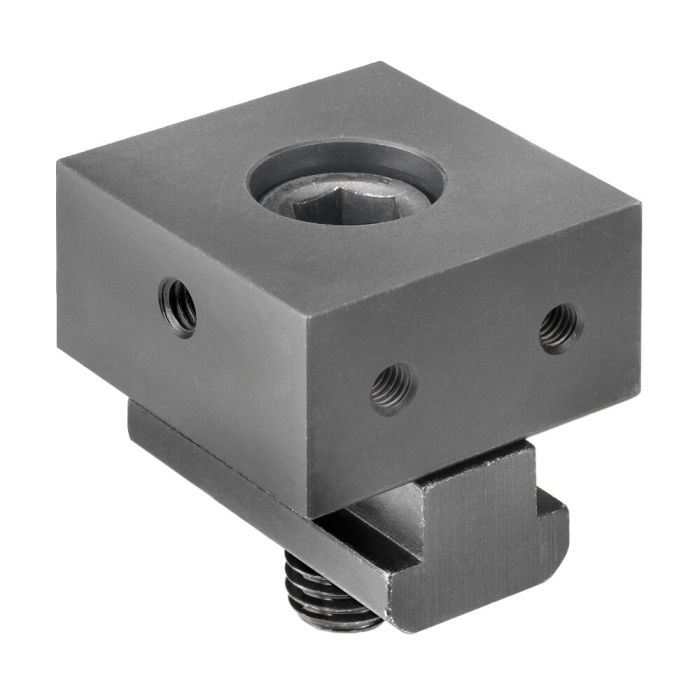

Fixed clamping jaw, smooth
Width 50 mm
Order no.
429316
Design:
Material: case-hardened steel 21MnCr5
Highly tempered and case hardened to 52 HRC. Hardness depth 0.6 mm
Application:
The fixed stop is positioned on the clamping rail via the tightening bolt and grips, positively interlocked, on the 2 mm serration. Workpieces can be positioned and clamped with great clamping force.
| Order no. | 429316 |
|---|---|
| Operating mode | Mechanical |
| Backenbreite | 50 |
