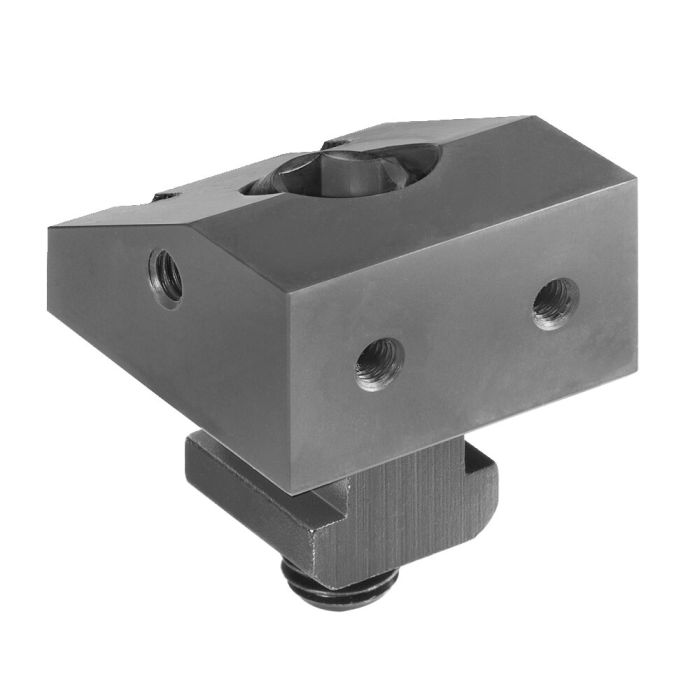

Fixed clamping jaw, smooth
For 5-axis clamp, width 72 mm
Order no.
429571
Design:
Material: case-hardened steel 21MnCr5
Highly tempered and case hardened to 52 HRC.
Hardness depth 0.6 mm
Application:
The fixed stop is positioned on the clamping rail via the tightening bolt and grips, positively interlocked, on the serration.
Workpieces can be positioned and clamped with great clamping force.
| Order no. | 429571 |
|---|---|
| Operating mode | Mechanical |
| Backenbreite | 72 |
