| Order no. | Article no. | dia. a | b | dia. D
| E | F | G | No's grooves | Weight
[g] | Availability | Your Price |
| 267062 | 70852-M85 * | 99 | 10 | 108 | 11,0 | 4,3 | M85x2,0 | 6 | 239 | | |
| 63784 | 70852-M28 | 36 | 7 | 42 | 6,5 | 2,8 | M28x1,5 | 4 | 35 | | |
| 63792 | 70852-M30 | 38 | 7 | 44 | 6,5 | 2,8 | M30x1,5 | 4 | 36 | | |
| 63800 | 70852-M32 | 41 | 8 | 48 | 7,0 | 3,3 | M32x1,5 | 4 | 52 | | |
| 63818 | 70852-M35 | 43 | 8 | 50 | 7,0 | 3,3 | M35x1,5 | 4 | 51 | | |
| 63826 | 70852-M38 | 47 | 8 | 54 | 7,0 | 3,3 | M38x1,5 | 4 | 60 | | |
| 63834 | 70852-M40 | 49 | 8 | 56 | 7,0 | 3,3 | M40x1,5 | 4 | 62 | | |
| 63842 | 70852-M48 | 57 | 8 | 65 | 8,0 | 3,8 | M48x1,5 | 6 | 75 | | |
| 63859 | 70852-M50 | 60 | 8 | 68 | 8,0 | 3,8 | M50x1,5 | 6 | 84 | | |
| 63867 | 70852-M52 | 62 | 8 | 70 | 8,0 | 3,8 | M52x1,5 | 6 | 87 | | |
| 63875 | 70852-M55 | 67 | 8 | 75 | 8,0 | 3,8 | M55x1,5 | 6 | 100 | | |
| 63883 | 70852-M58 * | 71 | 9 | 80 | 11,0 | 4,3 | M58x1,5 | 6 | 140 | | |
| 63891 | 70852-M60 | 71 | 9 | 80 | 11,0 | 4,3 | M60x1,5 | 6 | 130 | | |
| 63909 | 70852-M65 | 76 | 9 | 85 | 11,0 | 4,3 | M65x1,5 | 6 | 130 | | |
| 63917 | 70852-M70 | 81 | 9 | 90 | 11,0 | 4,3 | M70x1,5 | 6 | 140 | | |
| 63925 | 70852-M80 * | 91 | 10 | 100 | 11,0 | 4,3 | M80x2,0 | 6 | 180 | | |
| 63933 | 70852-M100 * | 116 | 10 | 125 | 11,0 | 4,3 | M100x2,0 | 6 | 299 | | |
| 63974 | 70852-M20 | 27 | 6 | 32 | 5,5 | 2,3 | M20x1,5 | 4 | 19 | | |
| | | | | | | | | | | |
Design:
Steel, zinc-plated. Hardness class 17H.
Application:

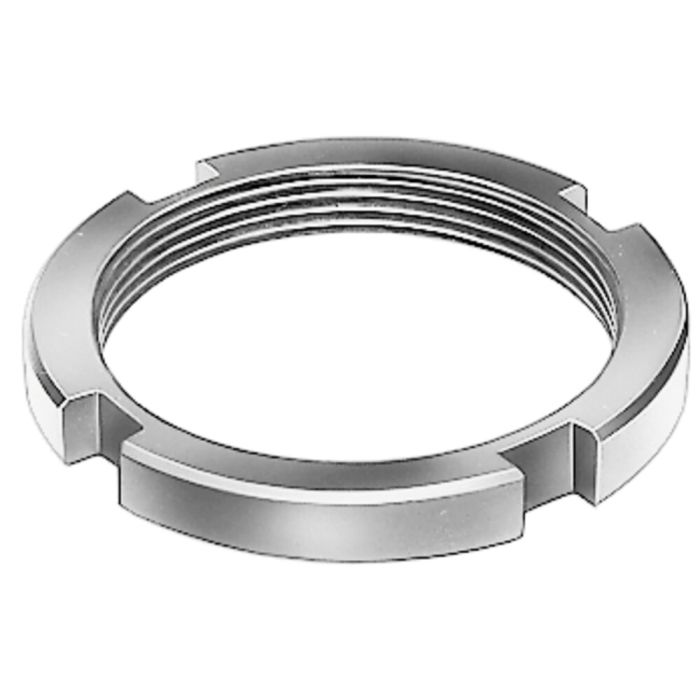

The flange nuts hold cylinders in the required position.
* not to DIN
More Information | Order no. | 63875 |
|---|
| Max. operating pressure [bar] | 400 |
|---|
| Type of actuation | Single acting, Double acting |
|---|
