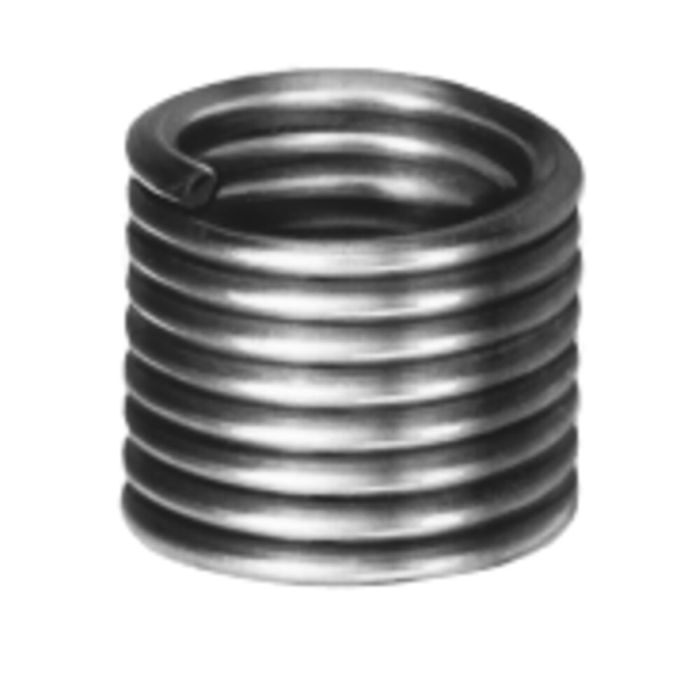

HELI-COIL thread insert
For cylinder size 6920D-24-001
Order no.
67546
Note:
The HELI-COlL thread insert can be installed using a manual or automatic installation tool. The driving pin is used only for installation, and must subsequently be removed using a special pin-breaker. Without the HELI-COlL insert the piston through-hole has the value of the gap ØM (see dimensions table).
| Order no. | 67546 |
|---|---|
| Max. clamping force [kN] | 30.15 |
| Max. operating pressure [bar] | 500 |
| Type of actuation | Double acting |
| Stroke [mm] | 10 |
