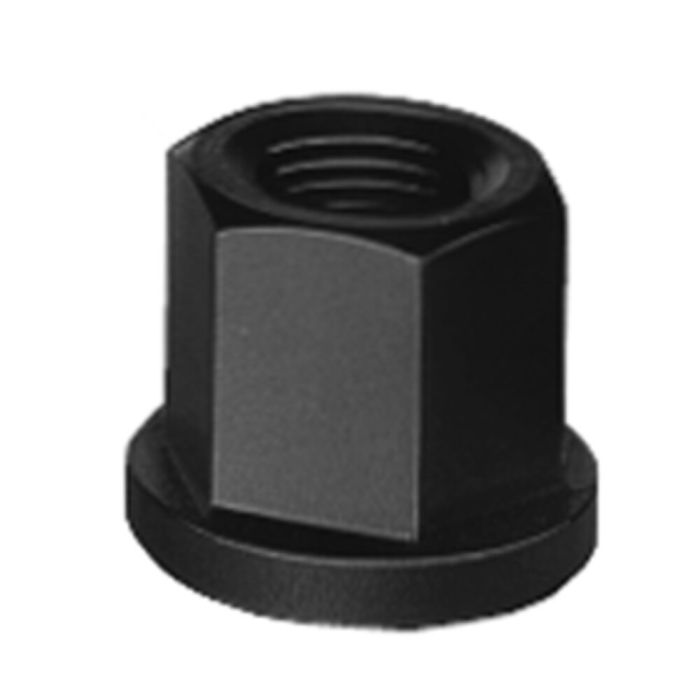

Hexagonal nuts with collar (1.5 d high)
Forged, size M8, height 12 mm, thread width 13 mm
| Order no. | Size D | A | D1 | E | m | S | Packaging
unit | Weight
[g] | Availability | Your Price |
| 82107 | M12 | 4 | 25 | 20,03 | 18 | 18 | 25 | 30 | | |
| 82115 | M8 | 3,5 | 18 | 14,38 | 12 | 13 | 50 | 12 | | |
| 82149 | M16 | 5 | 31 | 26,75 | 24 | 24 | 25 | 70 | | |
| 82156 | M20 | 6 | 37 | 33,53 | 30 | 30 | 25 | 130 | | |
| 82164 | M24 | 6 | 45 | 39,98 | 36 | 36 | 10 | 230 | | |
| 82172 | M30 | 8 | 58 | 51,28 | 45 | 46 | - | 470 | | |
| 82198 | M6 | 3 | 14 | 11,05 | 9 | 10 | 50 | 6 | | |
| 82206 | M18 * | 5 | 34 | 30,14 | 27 | 27 | 25 | 95 | | |
| 82214 | M10 | 4 | 22 | 17,77 | 15 | 16 | 50 | 21 | | |
| 82313 | M27 | 8 | 50 | 45,63 | 40 | 41 | - | 320 | | |
| | | | | | | | | | |
* Size not included in DIN, dimensions similar to DIN
More Information | Order no. | 82115 |
|---|
| Product type | Hexagon nuts |
|---|
| Thread [M] | 8 |
|---|
| Strength class | 10 |
|---|
