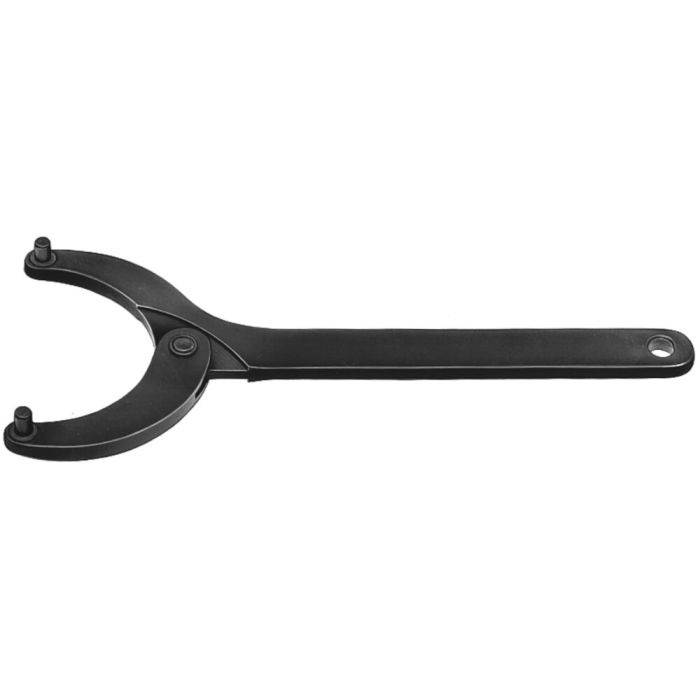

Hinged pin wrench for nuts with 2 holes
Blued, pin spacing 40-80 mm, ⌀ pin 4 mm
| Order no. | A | dia. D* | B1 | L | L1 | T | Weight
[g] | Availability | Your Price |
| 41038 | 18- 40 | 3 | 15 | 150 | 4 | 5 | 100 | | |
| 41046 | 18- 40 | 4 | 15 | 150 | 5 | 5 | 100 | | |
| 41053 | 40- 80 | 4 | 21 | 220 | 5 | 6 | 265 | | |
| 41061 | 40- 80 | 5 | 21 | 220 | 6 | 6 | 265 | | |
| 41079 | 40- 80 | 6 | 21 | 220 | 7 | 6 | 265 | | |
| 41087 | 80-125 | 6 | 28 | 295 | 7 | 8 | 650 | | |
| 41095 | 80-125 | 7 | 28 | 295 | 7,5 | 8 | 650 | | |
| 41103 | 80-125 | 8 | 28 | 295 | 8 | 8 | 650 | | |
| 41111 | 125-200 | 8 | 38 | 405 | 8 | 10 | 1590 | | |
| 41129 | 125-200 | 10 | 38 | 405 | 10 | 10 | 1590 | | |
| | | | | | | | | |
* Pin diameter = nominal diameter -0.1 mm (tolerance class h12)
More Information | Order no. | 41053 |
|---|
| Finishing | Blued |
|---|
| Pin spacing min. [mm] | 40 |
|---|
| Pin spacing max. [mm] | 80 |
|---|
| Pin diameter [mm] | 4 |
|---|
| Special features | With hinge |
|---|
