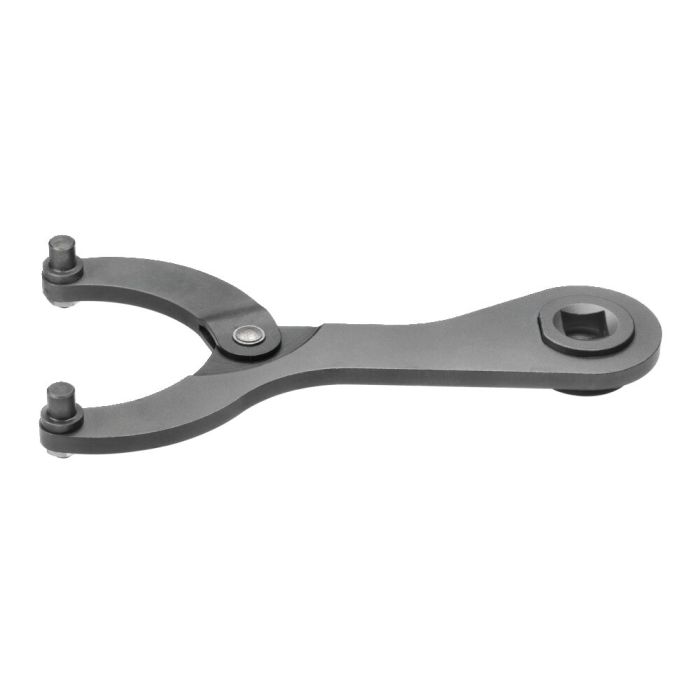

Hinged pin wrench for nuts with 2 holes with torque-wrench fitting
Blued, ⌀ nut 80-125 mm, ⌀ pin 6 mm, drive SW 3/4 inch
Order no.
50187
Note:
The set value for the torque wrench is dependant on insertion dimension "S". The operating manual provided with your torque wrench contains the requisite information and calculation formulae.
Ideal accessory for sizes 40 - 80 and 80 - 125: assortment box with loose pins (no. 764ZB-M6)
* Pin diameter = nominal diameter -0,1 mm (tolerance class h12)
| Order no. | 50187 |
|---|---|
| Finishing | Blued |
| Pin spacing min. [mm] | 80 |
| Pin spacing max. [mm] | 125 |
| Pin diameter [mm] | 6 |
| Key width [inch] | 3/4 |
| Special features | For torque wrench, With hinge, With replaceable pins |
