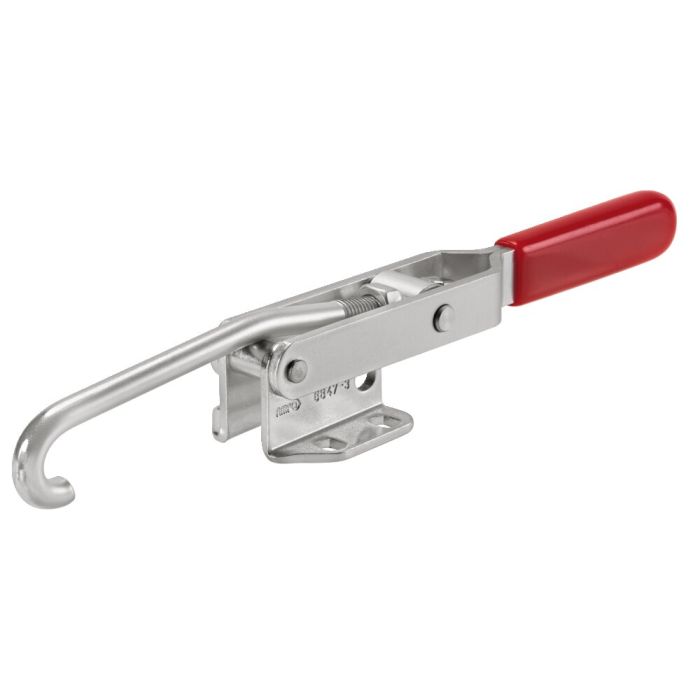

Hook type toggle clamp

Size 5, max. clamping force 2,5 kN

Order no.

95448

Order no.	Size	F1 [kN]	Adjustm. distance [mm]	Weight [g]
95406	1	1,0	8	100
95422	3	1,5	12	270
95448	5	2,5	14	850

Order no.	B1	b2	C	D	dia. d1	E1	E2	H	H1	H2	k	L1	m	N	P	R	S
95406	16,0-23,0	35,0-42,0	19	4,5	6	16,5-23,5	35,0-42,5	22,7	35,0	111	6	88	25,5-30,5	40	31	4,5	45
95422	32,5-44,0	65,5-77,0	19	5,6	8	39,5-50,5	72,5-84,0	22,7	36,5	179	13	148	31,0-36,0	45	40	5,5	97
95448	26,5-40,0	57,0-71,0	29	11,2	12	27,5-42,0	59,5-73,0	49,1	70,5	280	13	228	56,0-63,5	85	55	8,0	146
