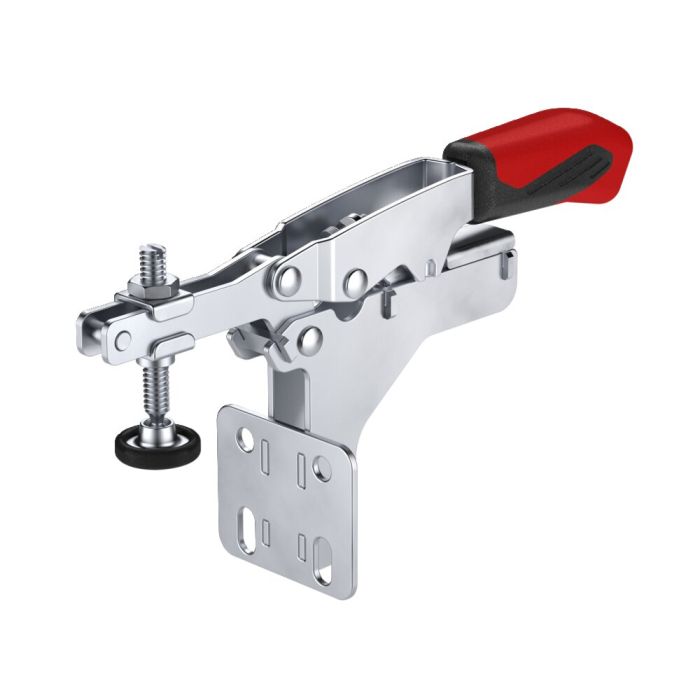

Horizontal toggle clamp with auto-adjust clamping height

With open clamping arm and angle base, size 20, max. clamping force 2 kN, max. height compensation 35 mm

Order no.

554881

Order no.	Size	F1 [kN]	Automatic height compensation S [mm]	Maximum height compensation [mm]	Clamping screw	Weight [g]
554881	20	2	20	35	M6 x 49	272
554882	50	3	35	40	M8 x 66	544

Order no.	A	b	C	D	D1	E	F	H	H1	H2	HW min.	HW max.	I	k	L1	m	N	P	α
554881	6,0	56	20,0 - 26,0	5,6	5,6	22	24	68	94	113	3	24	10	7,1	173	25,4	45	38	82°
554882	8,2	85	20,5 - 30,0	6,5	6,5	35	37	88	124	158	1	30	13	10,6	244	38,1	57	51	82°
