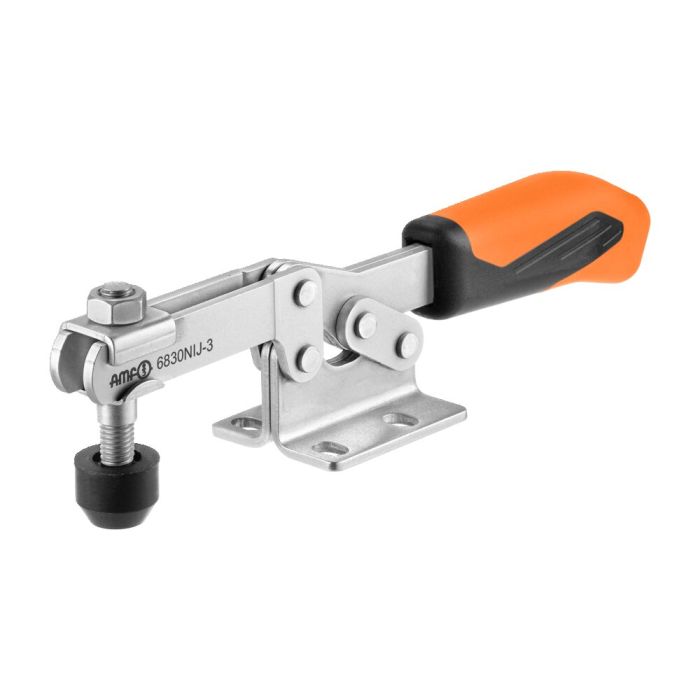

Horizontal toggle clamp with orange handle

With open clamping arm and horizontal base, size 2, max. clamping force 1,2 kN

Order no.

557441

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
557439	0	0,25	0,4	M4x25	35
557440	1	0,80	1,1	M5x30	105
557441	2	1,00	1,2	M6x35	185
557442	3	1,80	2,5	M8x45	320
557443	4	2,00	3,0	M8x65	700

Note:
For suitable sensor monitor for size 3 see no. 6897S.

CAD
