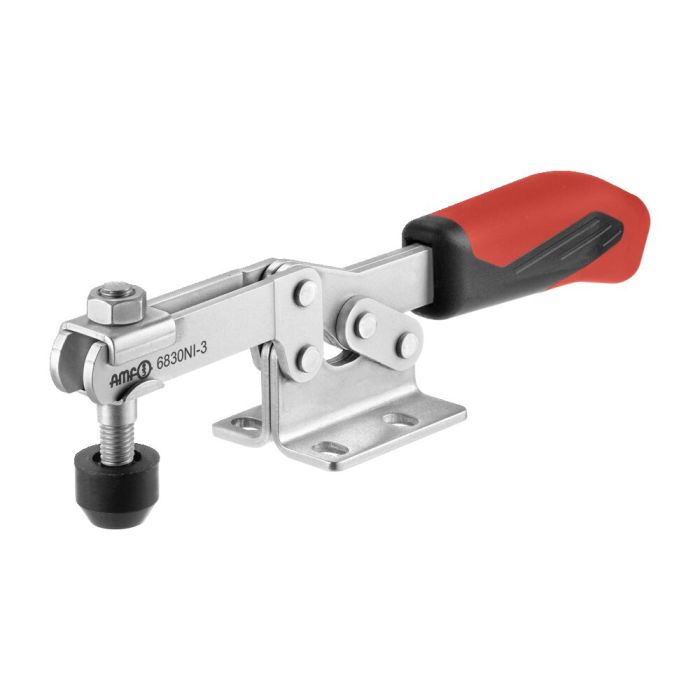

Horizontal toggle clamp with red handle

With open clamping arm and horizontal base, size 2, max. clamping force 1,2 kN

Order no.

95182

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
95141	0	0,25	0,4	M4x25	35
95166	1	0,80	1,1	M5x30	105
95182	2	1,00	1,2	M6x35	185
95208	3	1,80	2,5	M8x45	320
95224	4	2,00	3,0	M8x65	700

Note:
For suitable sensor monitor for size 3 see no. 6897S.

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Horizontal toggle clamp with red handle Nr. 93005 With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN

Wish List Compare

Your price:
Vertical toggle clamp with red handle Nr. 95000 With open clamping arm and horizontal base, size 0, max. clamping force 0,7 kN

Wish List Compare

Your price:
Push-pull type toggle clamp with red handle Nr. 95265 With small angle base, size 0, max. clamping force 0,8 kN

Wish List Compare

Your price:
Horizontal hook-type toggle clamp with red handle Nr. 95521 Size 2, max. clamping force 1,6 kN

Wish List Compare

Your price:
Vertical hook-type toggle clamp with red handle Nr. 95588 Size 2, max. clamping force 1,6 kN

Wish List Compare

Your price:

Order no.	A	b	C	D	D1	E	F	H	H1	H2	HW min.	HW max.	I	k	L	L1	m	M1	N	P	α
95141	4	28	11,5-15,5	4,6	-	9	5	14,5	23	34	-5	0,6	7,5	6,25	-	79	16	-	25	25,5	90°
95166	5	42	13,3-14,7	5,2	-	18,6	8	19	30	49	-4	2	10	5,5	-	120	18,0-21,5	-	34	34	90°
95182	6	64	26	5,6	5,6	32	16	24	45	68	-1,6	5	13	6	12,7	162	19,5-29,5	28,5	42	38	90°
95208	8	73	25,7	6,5	5,1	36	14	32	48,5	86	-2	9	15	7	13	206	22,0-31,8	31,6	44,5	50	90°
95224	10	113	41	8,5	8,5	63	27	45	75	126	-4	24	20	8	20,5	287	29,0-43,0	43	58	57	90°
