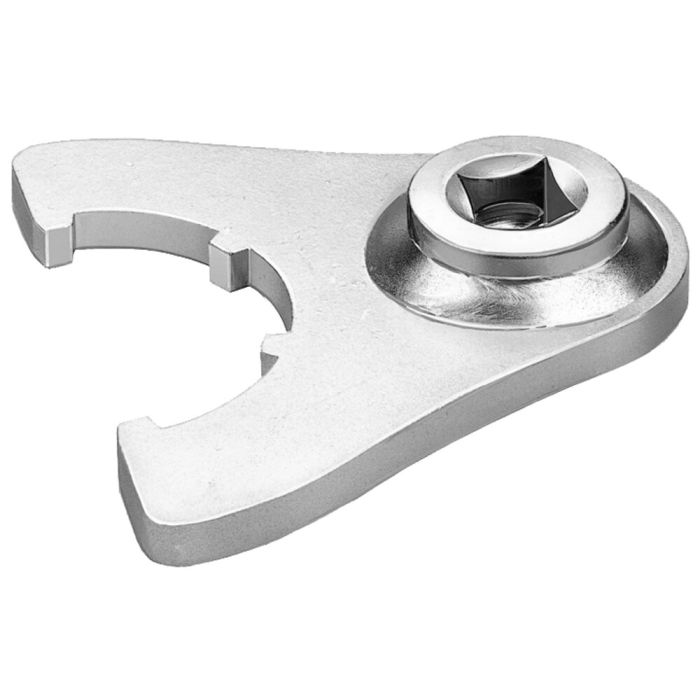

Key for collet chuck with torque-wrench fitting
Steel zinc-plated, DIN ISO 15488 size 16 + nut thread M22x1.5, ⌀ 32 mm
Order no.
52316
Note:
The set value for the torque wrench is dependant on insertion dimension "S".
The operating manual provided with your torque wrench contains the requisite information and calculation formulae.
Advantage:
Controlled tightening prevents damage to spindle changing tools on a machine.
On request:
Other sizes available.
| Order no. | 52316 |
|---|---|
| Finishing | Zinc-plated |
| Nut size min. [mm] | 32 |
| Nut size max. [mm] | 32 |
| Key width [inch] | 1/2 |
| Special features | For torque wrench |
