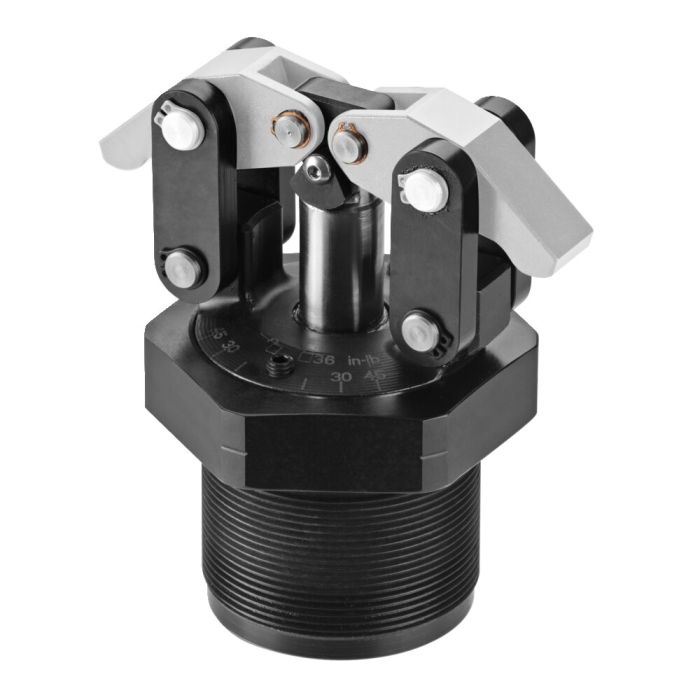

Design: Housing from steel, hardened and burnished. Piston rod case hardened and chrome plated. Clamp arm not included. Oil supply via fixture body.
Application: The link clamp, double-sided is ideal for clamping through a component opening or for clamping two components with one clamping element.
Features: A load equalisation mechanism enables uniform clamping when the workpiece surfaces are within 1.5 millimetres of each other. The clamping force is then distributed evenly on both sides. The position of the clamping arms can be freely selected within 360 degrees.
Note: The clamping arm must clamp on a flat surface.
Sp = Clamp, Lo = Unclamp *Details with clamping arm, standard - the clamping force is distributed evenly on both sides. **Corresponds to +/- 10˚ clamping angle with clamping arm, standard
