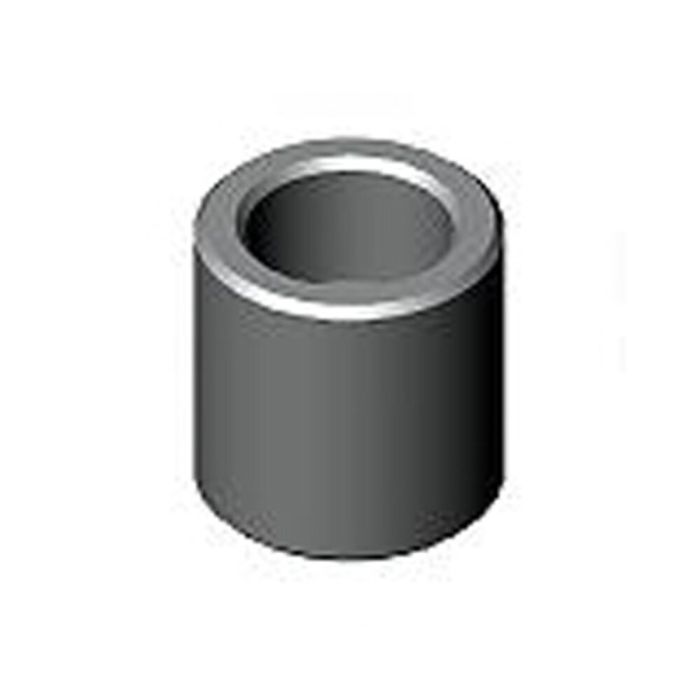

Locating-support pin

Dist. fr. face to loc. holes 30 mm, support height 50 mm, dia. drilling 16 mm

Order no.

77982

Order no.	Article no.	dia. D F7	Dist. fr. face to loc. holes dia. D1 ±0.02	Support height H ±0.01	Weight [g]
77974	6363-12-003-2	16	30	30	115
77982	6363-12-003-3	16	30	50	195
78188	6363-16-003-2	22	40	40	270
78196	6363-16-003-3	22	40	60	425

Order no.	E	F	dia. S	dia. S1
77974	10	16	13	20
77982	10	36	13	20
78188	13	22	17	26
78196	13	42	17	26

More Information
Order no.	77982
