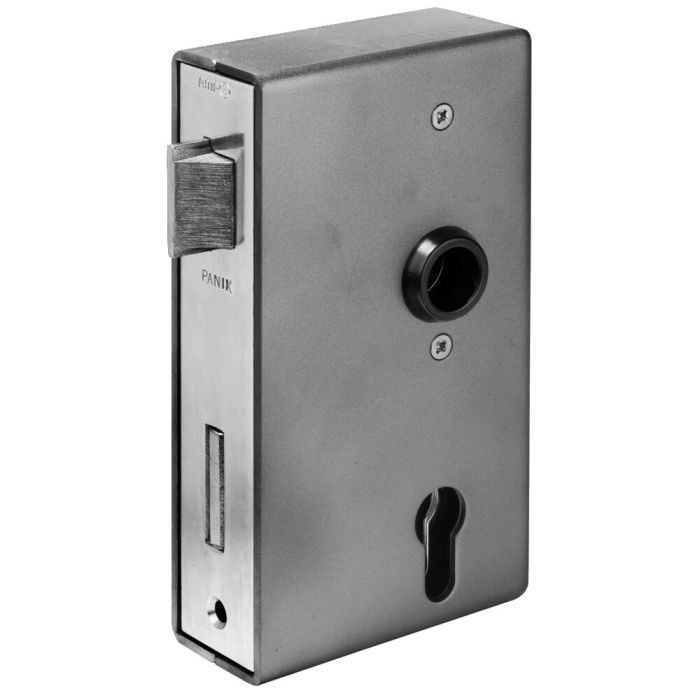

Lock case, bare-metal
Application:
Lock with access function D and divided follower socket. When the door is unlocked, this lock permits intermittent access from inside and outside. Warning: once the door is locked, access from outside is no longer possible! After being actuated from the inside, however, the door can also be opened from the outside (not self-locking). Rescue measures are not obstructed. From the inside, the anti-panic function is always available when the door is closed.
Note:
Separate supply of locks and fittings when the components must comply with DIN EN 179! Emergency-exit closure systems are safety-relevant products which may be subject to local regulations of the country in which they are installed, e.g. for Germany, they are entered in the Bauregelliste 2003/2 and they require an EU Certificate of Conformity (CE-mark).
Classification to DIN EN 179: 37601352AB/D
R = right, L = left
Cased lock, empty, see no. 140K!
| Order no. | 13391 |
|---|---|
| Closure | Profile cylinder (PZ) |
| Field of application | Emergency exit |
| Backset [mm] | 60 |
| Case width [mm] | 40 |
| Special features | Anti-panic lock |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Anti-panic lock, zinc-plated Nr. 13474 Spring bolt cannot be turned, case width 40 mm, door direction DIN R
- Lock case, bare-metal Nr. 14449 With galvanised anti-panic lock no. 142P-**, spring bolt cannot be turned, case width 40 mm, door direction DIN R
