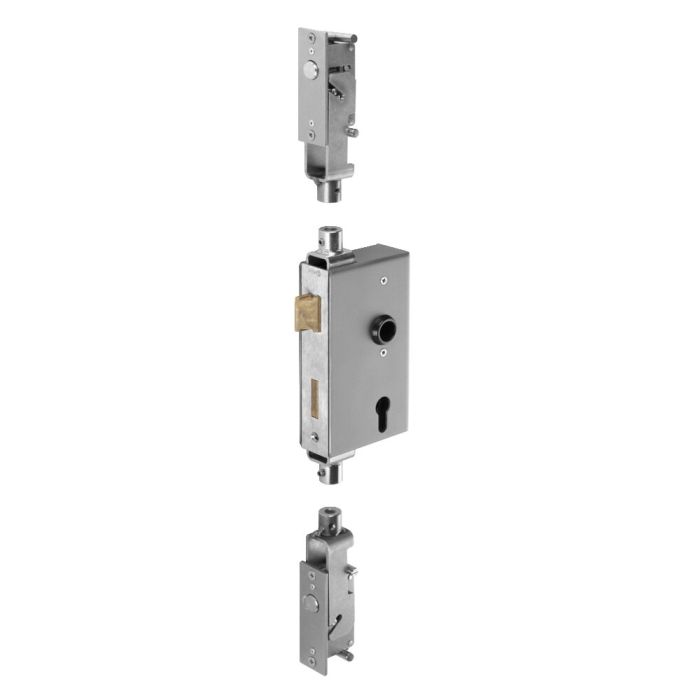

Lock case for horizontal multipoint locking, bare metal
With zinc-plated lock no. 142UMV, brass spring bolt and bolt, case width 40 mm
Order no.
557055
Application:
The multiple-locking AMF lock case is ideal for the additional and reliable locking of main and side doors or a fence without a surrounding frame. The horizontal locking is achieved via the profile cylinder.
Note:
Rectangular pipe profile and M10 studding are not supplied as standard. Studding provided by the customer should not exceed the max. length of 1200 mm each. The lock and the angle drive can be used for pipe profiles of 40x40 to 40x80 mm.
| Order no. | 557055 |
|---|---|
| Closure | Profile cylinder with night latch function (PZW) |
| Backset [mm] | 60 |
| Case width [mm] | 40 |
| Special features | Latch head brass, Multipoint locking |
