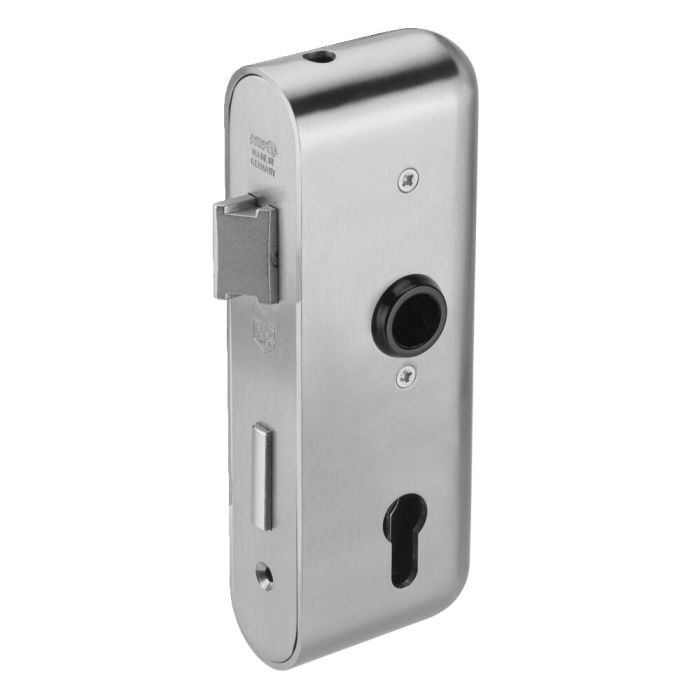

Lock case, V2A

With zinc-plated lock no. 143ENIG, case width 42,4 mm
Order no.
10454

Loading...

Stainless steel, ground, 240 grain. With zinc-plated lock no. 143ENIG, with stainless steel fore-end, ground.
Spring bolt nickel-plated. Stainless steel bolt. Can be used for left or right closing by turning the latch head. Prepared for profile cylinder (PZ) or bit key adapter set. With night latch.
Incl. lever rose set no. 494.
- Backset 40 mm
- Rotation 1 turn
- Spindle 8 mm
- Spacing 72 mm
- Spring-bolt projection 2 mm
- bolt projection 3 mm

More Information
Order no.10454
ClosureProfile cylinder with night latch function (PZW)
Backset [mm]40
Case width [mm]42
