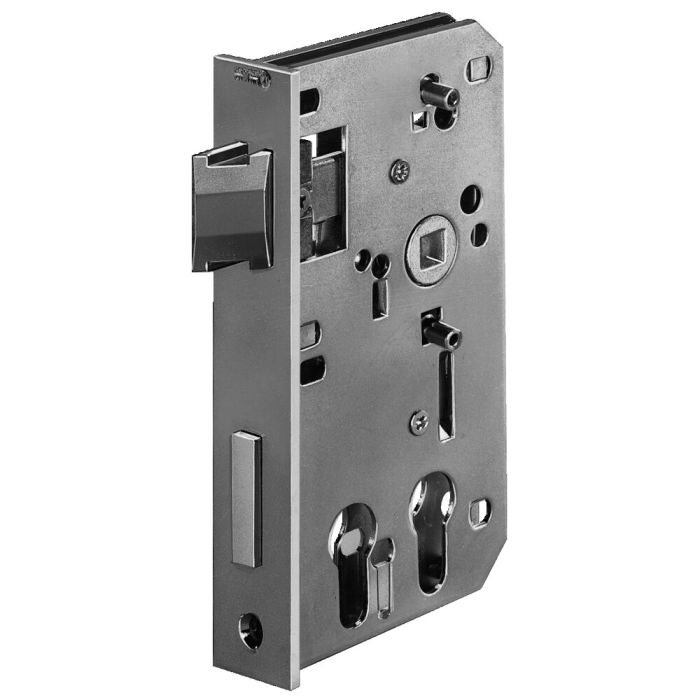

Lock for triangular and profile cylinders, zinc-plated
Can be used for left or right closing, case width 30 mm
Order no.
557058
Note:
The cylinders can be actuated separately from one another and open or close the bolt. Installation of triangular and profile cylinder without jamming of the lock regardless of key bit position possible when withdrawing the triangular socket spanner.
However, ensuring the following arrangement of triangular and profile cylinder is absolutely essential:
- Backset 30 mm: profile cylinder
- Backset 60 mm: triangular cylinder
| Order no. | 557058 |
|---|---|
| Closure | Profile cylinder (PZ) |
| Field of application | Two-sided locking option |
| Backset [mm] | 30, 60 |
| Case width [mm] | 30 |
| Special features | Double cylinder |
