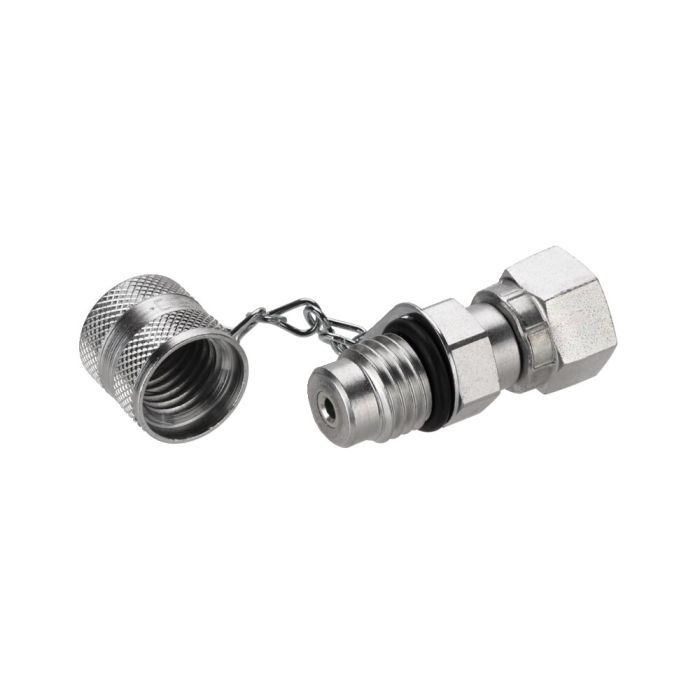

Measuring coupling
For pipe connection, max. operating pressure 630 bar, thread M16x1,5
Order no.
321984
Application:
The measuring coupling is used for pressure monitoring or venting.
Note:
Adaptation is possible under pressure up to max. 400 bar.
| Order no. | 321984 |
|---|---|
| Product type | Measuring coupling |
| Max. operating pressure [bar] | 630 |
| Oil port | Pipe |
