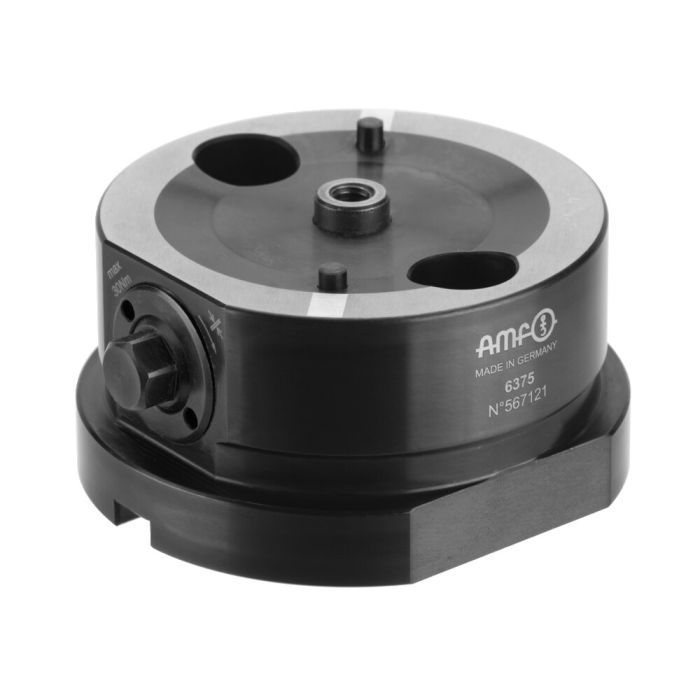

Mechanical collet - base element
Design:
The mechanism of the body is protected against dirt and cooling water. Surrounding clamping rim for fastening onto the machine table and flat surfaces for seating in the machine vice. Provided on the underside is the holder for the AMF zero-point system size 10 and size 20 as well as grooves for positioning on AMF zero-point clamping modules for indexing. The base element is used for seating the collet attachments for inside and outside clamping.
Note:
The collet attachments 6375ZA and 6375ZI must be fastened using the fastening kits 6375BA (outside clamping) or 6375BI (inside clamping).
Advantage:
- The lateral actuation makes it possible to clamp workpieces with blind holes and through-holes
- Control display clamped/released by means of dowel pin on the base element
- Flexibility through a base element for outside or inside clamping
| Order no. | 567122 |
|---|---|
| Operating mode | Mechanical |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Collet attachment outside clamping Nr. 428656 Size 20, Ø 140 - 149 mm, material made of high-strength aluminium, hard anodised (EN AW 7075)
