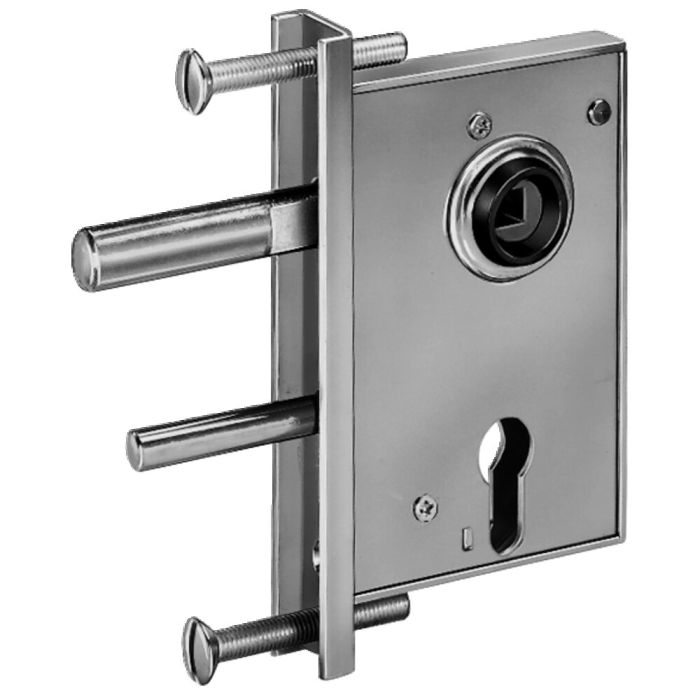

Medium-weight wrought-iron gate lock with channel fore-end
Can be used for left or right closing, profile cylinder with night latch function
Order no.
12435
Note:
Lock no. 107 with PZ closure can be retrofitted with the bit-key adapter set no. 51 (to be ordered separately).
For bolt-mounting to tubes with 27 - 50 mm outer diameter (3/4" - 1 1/2" threads) and spindle-section profiles or angular brackets. Minimum contact width for lock is 30 mm.
| Order no. | 12435 |
|---|---|
| Closure | Profile cylinder with night latch function (PZW) |
| Backset [mm] | 50 |
| Case width [mm] | 85 |
