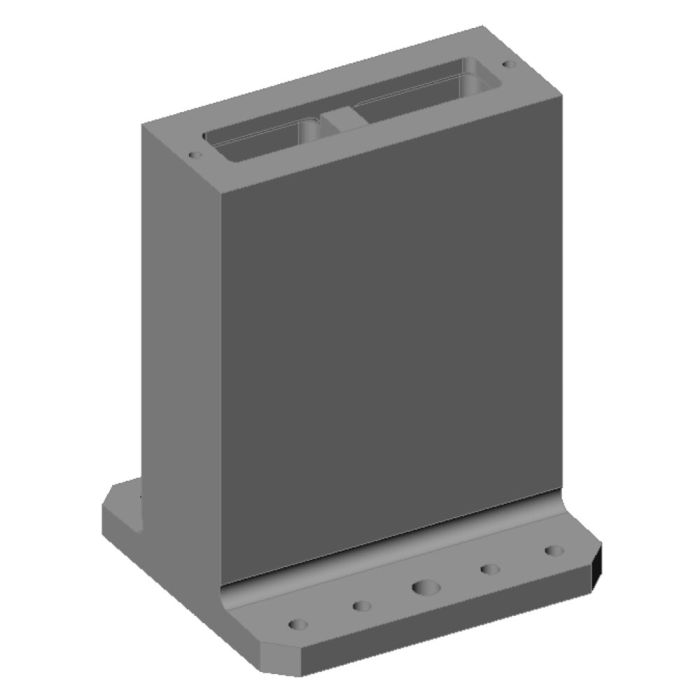

Mounting Angle
Base surface and clamping surface fine-milled, size 400x520 mm
Order no.
302406
Features:
Material: GG25 Alignment hole and centre hole: with hardened bushes in accordance with DIN 179 Base surface: with hole pattern according to drawing, suitable for machine table in accordance with DIN 55201
Note:
Special model: base surface and mounting face machined according customer's request such as threaded holes and grid holes.
| Order no. | 302406 |
|---|---|
| Right angle deviation C | 0,025 |
| Tolerance C | ±0,05 |
