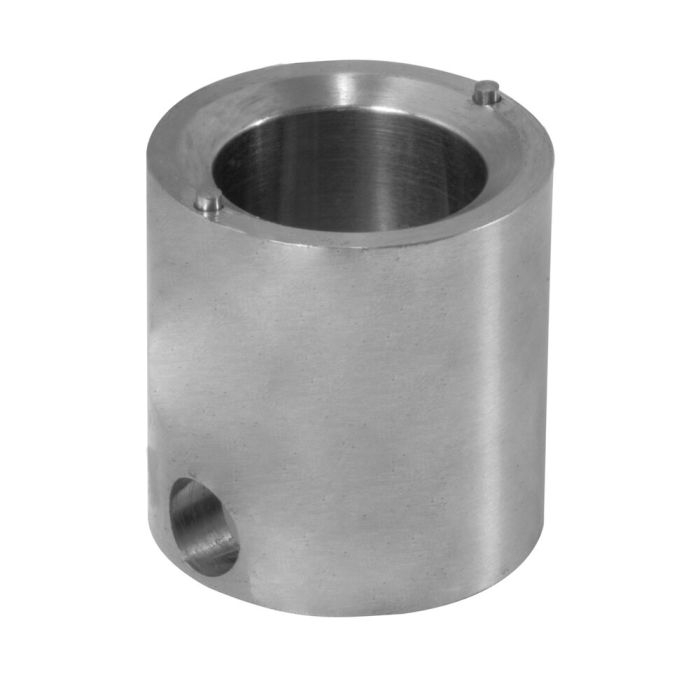

Mounting key for horizontal rapid-clamping cylinder
Suitable for 6370HARH, size 20
Order no.
424556
Application:
The mounting key is needed for installation of the threaded sleeve of the horizontal rapid-clamping cylinder.
| Order no. | 424556 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 20 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Horizontal rapid-clamping cylinder Nr. 303065 Hydraulic opening, size KH20, manual run-out and run-in movements of the suspension piston
- Horizontal rapid-clamping cylinder Nr. 306217 Hydraulic opening, size KH20, hydraulic run-out and run-in movements of the suspension piston
