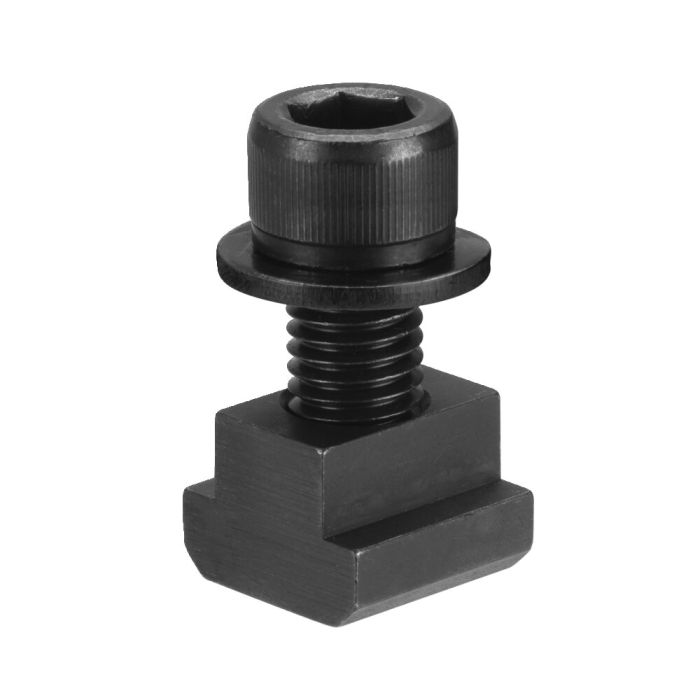

Mounting kit
Size 12/16, slot 14 mm, thread M12
Order no.
568000
Advantage:
Depending on the workpiece surface, top parts can be attached easily and quickly to the existing thrust piece using the installed magnet.
| Order no. | 568000 |
|---|---|
| Product type | Compact clamp |
| Size/load static [kN] | 12, 16 |
| Slot [mm] | 14 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Compact clamp Nr. 567996 Size 12, max. load static 12 kN, slot 14 mm, grid plate M12, height 0-100 mm
