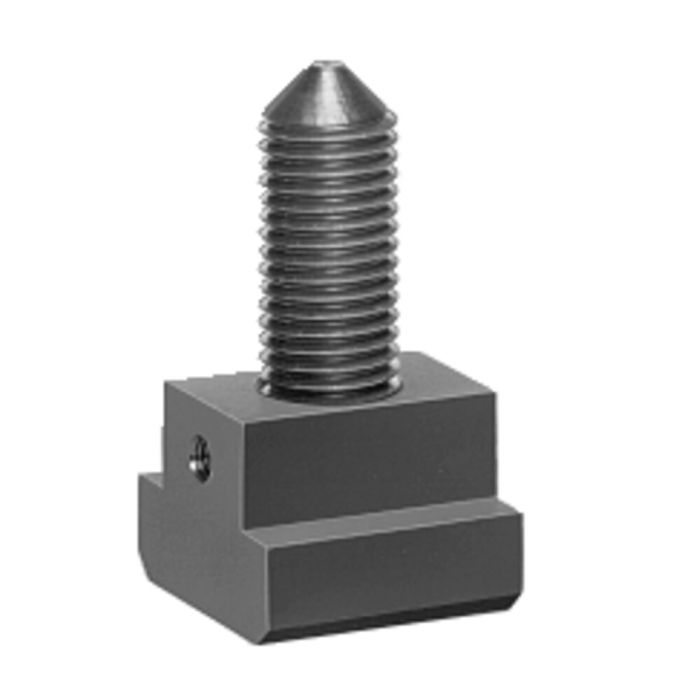

Nut for T-slot
With threaded stud for base elements 7110F & 7110FS & 7110FA, screw M20, slot 22
| Order no. | Article no. | Slot | G x L | Strength class | Weight
[g] | Availability | Your Price |
| 112318 | 7110F-M12x14 | 14 | M12x40 | 10,9 | 55 | | |
| 112342 | 7110F-M12x18 | 18 | M12x45 | 10,9 | 110 | | |
| 127464 | 7110F-M20x22 | 22 | M20x60 | 8,8 | 435 | | |
| 127472 | 7110F-M20x24 | 24 | M20x60 | 8,8 | 435 | | |
| 127480 | 7110F-M20x28 | 28 | M20x60 | 8,8 | 435 | | |
| 181669 | 7110F-M16x18 | 18 | M16x50 | 8,8 | 140 | | |
| 181677 | 7110F-M16x20 | 20 | M16x50 | 8,8 | 190 | | |
| 181685 | 7110F-M16x22 | 22 | M16x60 | 8,8 | 240 | | |
| 181701 | 7110F-M16x28 | 28 | M16x70 | 8,8 | 445 | | |
| 86249 | 7110F-M12x12 | 12 | M12x30 | 10,9 | 40 | | |
| | | | | | | |
More Information | Order no. | 127464 |
|---|
| Type | 20 |
|---|
