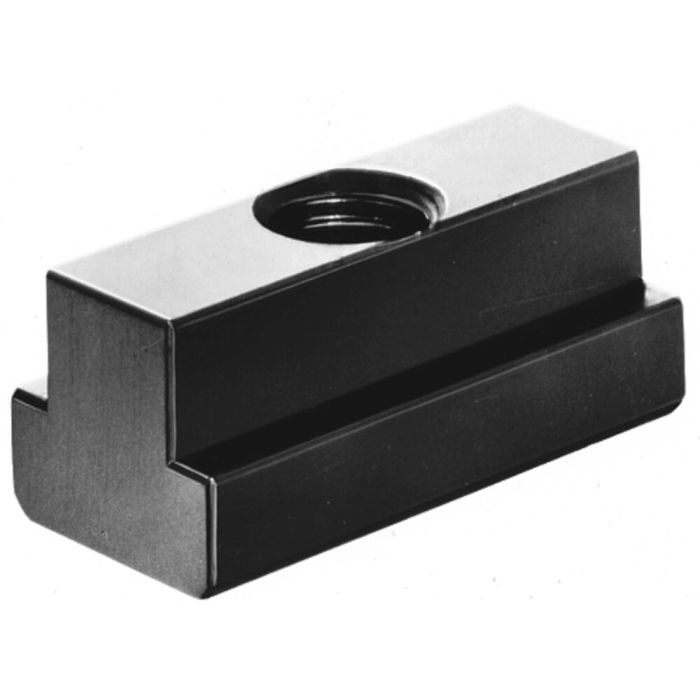

Nuts for T-slots, extended
Thread M6, slot 8 mm, test force 16 kN, length 26 mm
| Order no. | D x Slot | Test force
[kN] | A | E | H | k | L | Packaging
unit | Weight
[g] | Availability | Your Price |
| 84640 | M5x6 | 11,4 | 5,7 | 10 | 8 | 4 | 20 | 50 | 8 | | |
| 84657 | M6x8 | 16,0 | 7,7 | 13 | 10 | 6 | 26 | 50 | 14 | | |
| 84665 | M8x10 | 29,0 | 9,7 | 15 | 12 | 6 | 30 | 50 | 30 | | |
| 84673 | M10x12 | 46,0 | 11,7 | 18 | 14 | 7 | 36 | 50 | 49 | | |
| 84681 | M12x14 | 67,0 | 13,7 | 22 | 16 | 8 | 44 | 25 | 82 | | |
| 84699 | M14x16 | - | 15,7 | 25 | 18 | 9 | 50 | 50 | 120 | | |
| 84707 | M16x18 | 128,0 | 17,7 | 28 | 20 | 10 | 56 | 20 | 170 | | |
| 84715 | M18x20 | - | 19,7 | 32 | 24 | 12 | 64 | 10 | 260 | | |
| 84723 | M20x22 | 196,0 | 21,7 | 35 | 28 | 14 | 70 | - | 360 | | |
| 84749 | M24x28 | 282,0 | 27,7 | 44 | 36 | 18 | 88 | - | 730 | | |
| 84764 | M30x36 | 448,0 | 35,6 | 54 | 44 | 22 | 108 | - | 1390 | | |
| | | | | | | | | | | |
Note:
For test force see DIN 508
Advantage:
This extended form safegards the T-slots of precission machine tables.
More Information | Order no. | 84657 |
|---|
| Produkttyp | Nuts for T-slots |
|---|
| Gewinde [M] | 6 |
|---|
| Nut [mm] | 8 |
|---|
| Festigkeitsklasse | 10 |
|---|
| Weight [g] | 14 |
|---|
