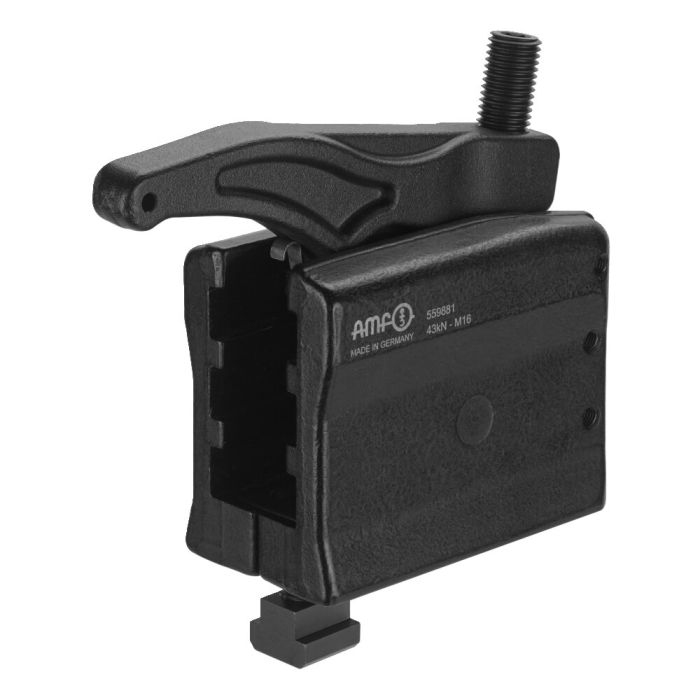

Power clamp 3-step

Note:
- The max. load may differ, depending on the manner of clamping and condition of the threads (lubrication).
- To reduce the wear on the adjusting screw, we recommend the use of AMF screw compound no. 6339. It has a synergistic combination of highly-effective solid lubricants, is heat-resistant and does not wash out.
- Use only the corresponding AMF mounting kit No. 7630BFS.
- If the clamping element without T-slot nut DIN 508 is used, the tensile strength of the support plate must be at least 900 N/mm²!
- Not suitable for use on injection moulding and die-casting machines and presses.

Advantage:
- Captive feature by means of threaded stud at all levels
- 3-fold continuously adjustable adjustment range
- High clamping forces of 22 kN - 49 kN
- The very robust design enables quick and easy clamping
- For use in T-slots 14 - 28 mm or grid plates M12, M16, M20
