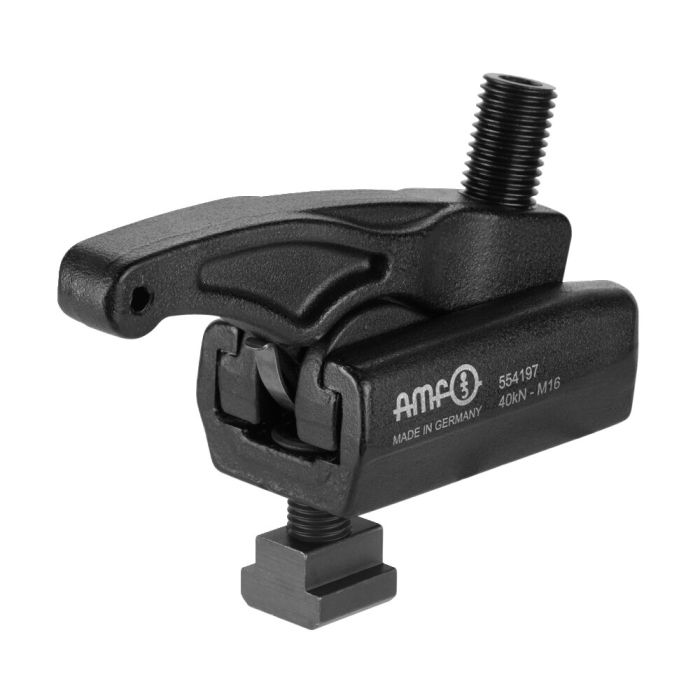

Power clamp

Size 22, max. load static 22 kN, slot 12 mm, grid plate M10, height 5-38 mm

Order no.

562184

Product variants

Order no.	Size	Max. load static [kN]	m	Slot	H	E	L	Weight [g]
554198	49	49	M20	22	7 - 88	36 - 165	176	5928
556186	30	30	M12	14	6 - 68	20 - 110	135	2013
556187	30	30	M16	18	6 - 68	24 - 113	135	2045
556188	43	43	M16	18	6 - 80	29 - 134	155	3158
556189	32	32	M12	14	6 - 50	20 - 82	95	1462
556190	40	40	M16	18	6 - 55	25 - 94	110	2262
556406	22	22	M12	14	5 - 38	19 - 54	65	700
562184	22	22	M10	12	5 - 38	19 - 54	65	700
563656	44	44	M18	20	7 - 88	36 - 165	176
564654	60	60	M24	28	8 - 102	63 - 180	203	8950

Order no.	Max. load, dynamic swelling [kN]	b	B1	b2	E1	E2	G1	H1	H2	M1	SW1	Md 1 [Nm]	Md [Nm]
554198	38	75	21	25	20	36	M10	125	52	M24	12	220	200
556186	23	54	13	18	13	25	M8	85	36	M16	8	100	70
556187	23	54	17	18	16	28	M8	85	36	M16	8	100	150
556188	32	59	17	20	16	32	M8	105	42	M20	10	150	150
556189	24	54	13	18	12	20	M8	78	36	M16	8	100	70
556190	31	59	17	20	15	26	M8	92	42	M20	10	150	150
556406	17	45	13	13	11	-	M6	58	30	M12	6	50	40
562184	17	45	13	13	11	-	M6	58	30	M12	6	50	35
563656													160
564654	45	90	24,5	30	23	45	M10	143	57	M24	12	300	280

Details

Note:
- Use only the corresponding AMF mounting kit 7600BFS.
- If the clamping element without T-slot nut DIN 508 is used, the tensile strength of the support plate must be at least 900 N/mm²!

Advantage:
- Additional clamping heights can be achieved by installing multiple spacer elements
- Continuous transition between the clamping heights
- For use in T-slots 12 - 28 mm and/or grid plates M10, M12, M16, M20

Technical specifications

More Information
Order no.	562184
Product type	Power clamp
Size/load static [kN]	22
Slot [mm]	12
