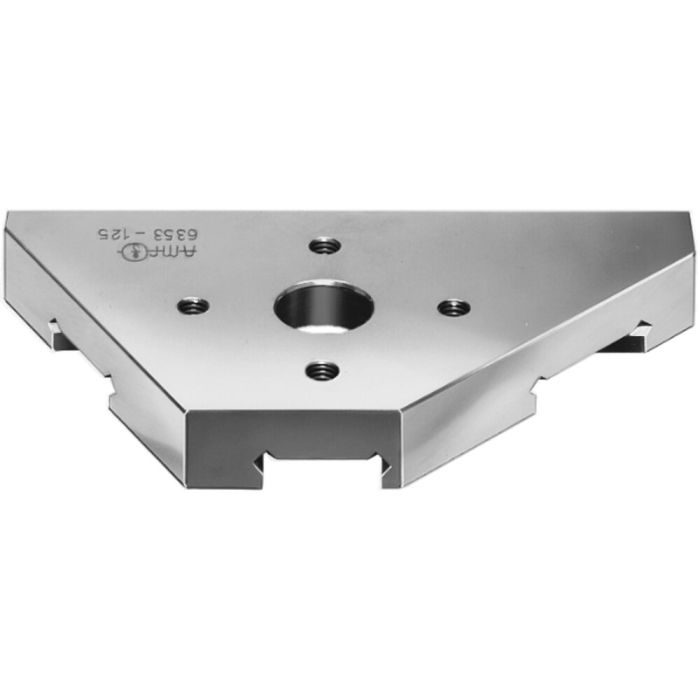

Precision angle stop
Slot 12-36 mm, length 200 mm, width 98 mm, height 20 mm
Order no.
74468
Application:
Fixed type tenons no. 6322A and loose type tenons DIN 6323 match with the mentioned table slots. The universal stops can alternatively be fastened complete with T-slots bolts DIN 787 or with T-nuts DIN 508 with screws ISO 4762 and washers DIN 6340. The high precision of the above mentioned universal stops guarantees the positioning accuracy required for almost any machining job. Machining can start straight away. There is no need to meter stop.
| Order no. | 74468 |
|---|---|
| Product type | Stops |
| Slot [mm] | 12, 14, 16, 18, 20, 22, 24, 28, 36 |
| Length [mm] | 200 |
| Width [mm] | 98 |
| Height [mm] | 20 |
