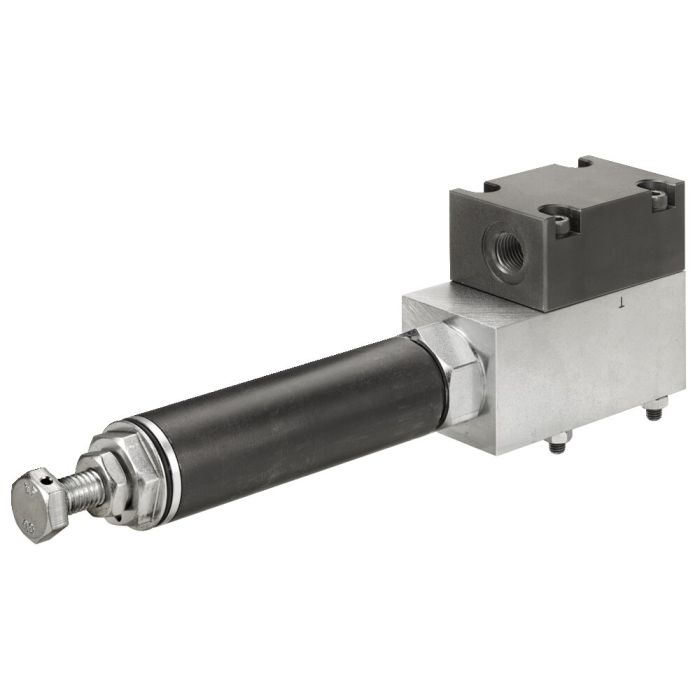

Pressure control seat valve
Design:
Compact electronic pressure switch with integrated 4-digit display. With two independent switching points and reverse switching points.
Stainless steel measuring cell with thin film DMS (expansion measuring strips).
Screw-in thread G¼ A – DIN 3852-E, 2 switch outputs.
Application:
For the electronic-hydraulic pressure monitoring in pump units and in circuits of hydraulic clamping devices.
Features:
The four-digit digital display can depict the pressure in bar, psi or MPa.
Switching points and switch-back hystereses can be set independently. Switch-on and reset delay can be set from 0 to 99.9 seconds.
Adjustable display: current pressure, peak pressure value or to switching point 1 or switching point 2. Simple handling via key programming.
| Order no. | 326504 |
|---|---|
| Product type | Pressure control seat valve |
| Max. operating pressure [bar] | 500 |
| Oil port | O-ring |
| Volume flow [l/min] | 6 |
