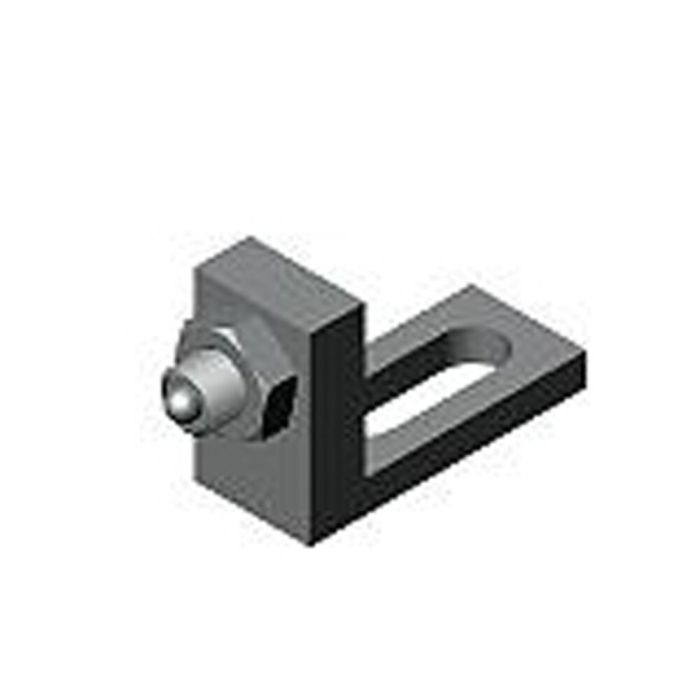

Pressure element, with spring plunger
Travel of spring 4 mm, contact force 12-16 N, height 40 mm, length 60 mm
| Order no. | Article no. | b | F | travel of spring h | Contact force
[N] | H1 | H2 | Weight
[g] | Availability | Your Price |
| 77891 | 6363-12-029 | 25 | 7 | 4 | 12-16 | 28 | 40 | 150 | | |
| 77917 | 6363-16-029 | 30 | 9 | 5 | 22-44 | 36 | 50 | 300 | | |
| | | | | | | | | | |
| Order no. | L | L1 | L2 | L3 | L4 | m | S | SW |
| 77891 | 60 | 12 | 12 | 23,5 | 32 | M12 | 12,5 | 18 |
| 77917 | 78 | 16 | 15 | 31,5 | 37 | M16 | 16,5 | 24 |
| | | | | | | | |
More Information | Order no. | 77891 |
|---|
