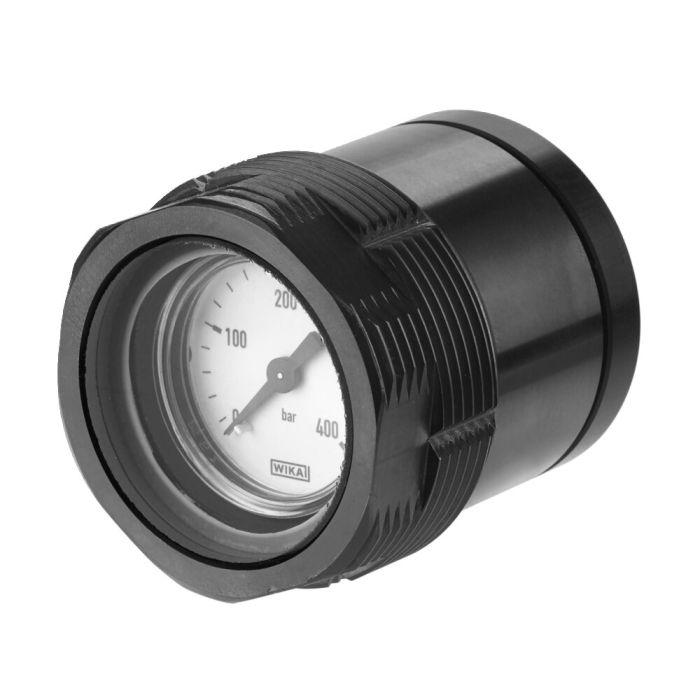

Pressure gauge, with housing
Threaded design, max. operating pressure 400 bar
Order no.
562212
Design:
Steel housing, burnished, splash-proof by means of chip-resistant glass pane. Supplied as standard with O-ring, oil plugs and fastening bolts. Oil supply via threaded connection or oil channel in the fixture body.
Application:
For quick, direct reading of hydraulic pressures in fixtures. Pressure gauge is protected by a chip-resistant glass pane.
Note:
The bottom oil channel is plugged by a sealing washer and an M4 x 6 bolt. The display can be aligned freely with waf 13.
| Order no. | 562212 |
|---|---|
| Product type | Pressure gauge and manifold |
| Max. operating pressure [bar] | 400 |
| Oil port | O-ring |
