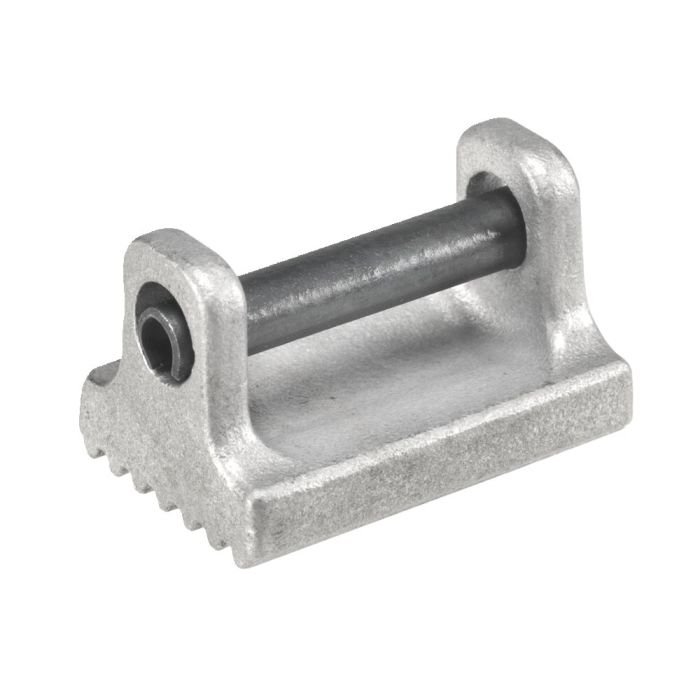

Pressure pad
Size 22, wavy contact surface, dimensions 19x12x14 mm
| Order no. | Size | Form | A | A1 | b | C | Weight
[g] | Availability | Your Price |
| 553351 | 30 / 32 | DG | 19,5 | 6,0 | 25 | 18 | 28 | | |
| 553352 | 30 / 32 | DR | 19,5 | 6,0 | 25 | 18 | 27 | | |
| 553442 | 40 / 43 | DG | 24,0 | 6,5 | 30 | 20 | 47 | | |
| 553443 | 40 / 43 | DR | 24,0 | 6,5 | 30 | 20 | 48 | | |
| 554301 | 44 / 49 | DG | 28 | 7,0 | 36 | 25 | 75 | | |
| 554302 | 44 / 49 | DR | 28 | 7,0 | 36 | 25 | 78 | | |
| 556409 | 22 | DG | 14 | 4,5 | 19 | 12 | 11 | | |
| 556410 | 22 | DR | 14 | 4,5 | 19 | 12 | 10 | | |
| 564667 | 60 | DG | 29 | 8,0 | 43 | 28 | 115 | | |
| 564668 | 60 | DR | 29 | 8,0 | 43 | 28 | 110 | | |
| | | | | | | | | |
Advantage:
Suitable for processing sensitive workpieces/surfaces (e.g. aluminium).
More Information | Order no. | 556410 |
|---|
| Product type | Power clamp |
|---|
| Size/load static [kN] | 22 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Pressure pad Nr. 556409 Size 22, smooth contact surface, dimensions 19x12x14 mm
