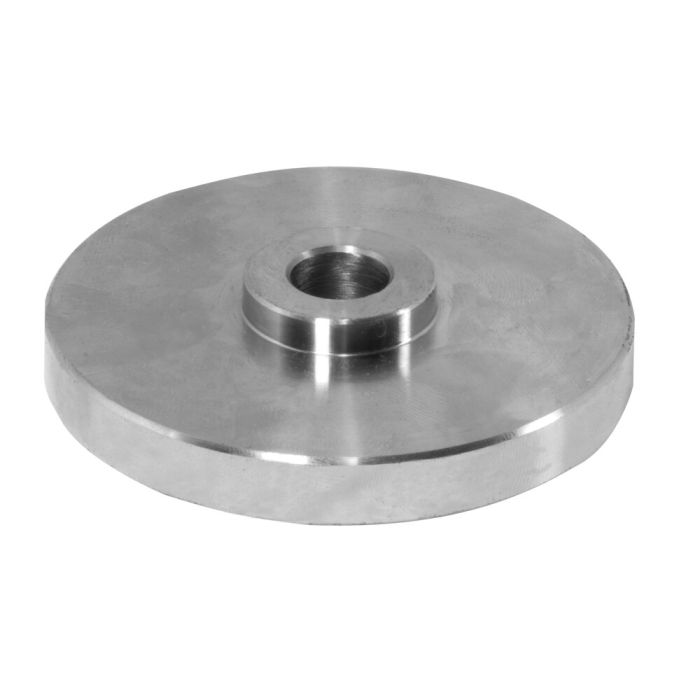

Protective shield
For engagement screw No. 6370ZNSA, size 20
Order no.
422360
Application:
The protective shield is used when through-holes must be set in the area of the module cover. As a result, the module cover is protected from damage.
The protective shield is suitable for hydraulic, mechanical and pneumatic clamping modules of the same size.
| Order no. | 422360 |
|---|---|
| Produkttyp | Engagement screws |
| Betriebsart | Mechanical, Hydraulic, Pneumatic |
| Größe Spannmodule | 20 |
| Weight [g] | 340 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303149 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 with colour coding for M12 engagement screw Nr. 430322 For clamping modules size 20, zero point pull-stud "Gold"
- Pull-stud size 20 for M12 engagement screw with reduced fitting collar Nr. 562761 For clamping modules size 20, zero point pull-stud
