Pull-stud set size 5
Ready-to-install slit pull-stud set – compensates for tolerances and enables secure, tension-free mounting in the second axis
Order no.
572050
Design:

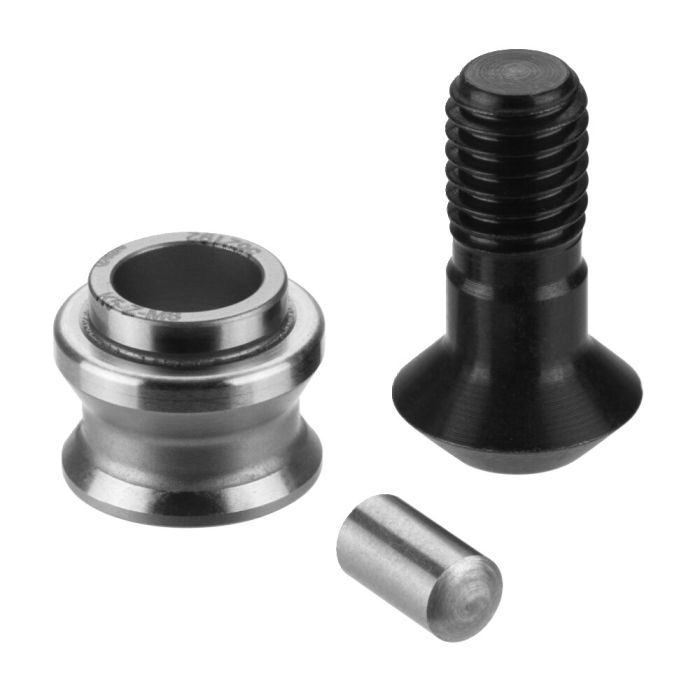

Ready-to-install pull-stud sets for use with substrate plates in the additive manufacturing process. Each set contains a pull-stud, a matching engagement screw and a dowel pin. The studs are available in three variants and allow flexible adaptation to the respective application – from exact referencing to compensation of tolerances.
Order no. 572049: Zero-point pull-stud set
Order no. 572050: Slit pull-stud set
Order no. 572051: Undersize pull-stud set
Features:
- Compatible with all AMF zero-point clamping modules of size 5
| Order no. | 572050 |
|---|
