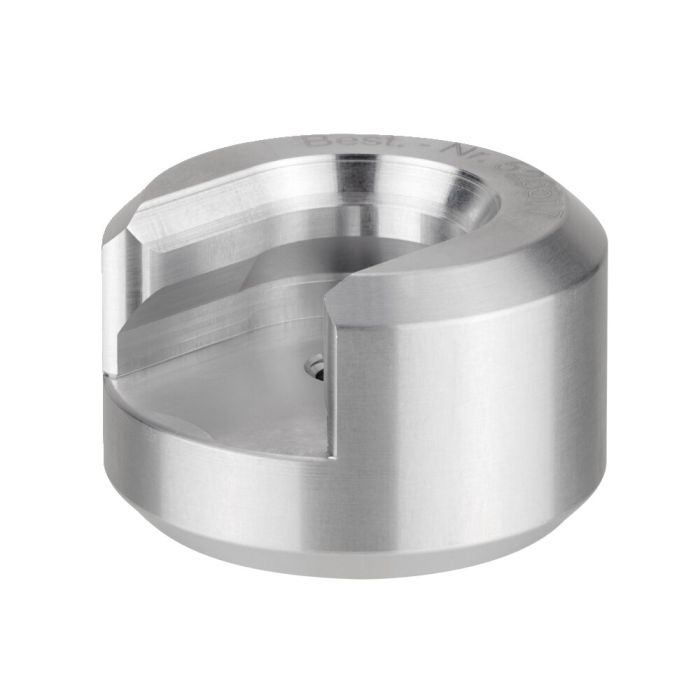

Puller
For pull-stud size 20
Order no.
526517
Design:
Aluminium puller is suitable for 20 pull-stud.
Application:
Pull-studs can be simply and quickly removed from the workpiece or fixture. For this purpose, the size 20 puller is mounted on a pin extractor and the pull-studs are pulled out without damaging the mounting bore.
| Order no. | 526517 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 20 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303149 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 with colour coding for M12 engagement screw Nr. 430322 For clamping modules size 20, zero point pull-stud "Gold"
- Pull-stud size 20 for M12 engagement screw with reduced fitting collar Nr. 562761 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 for M16 engagement screw Nr. 554939 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 for M16 engagement screw with reduced fitting collar Nr. 562768 For clamping modules size 20, zero point pull-stud
