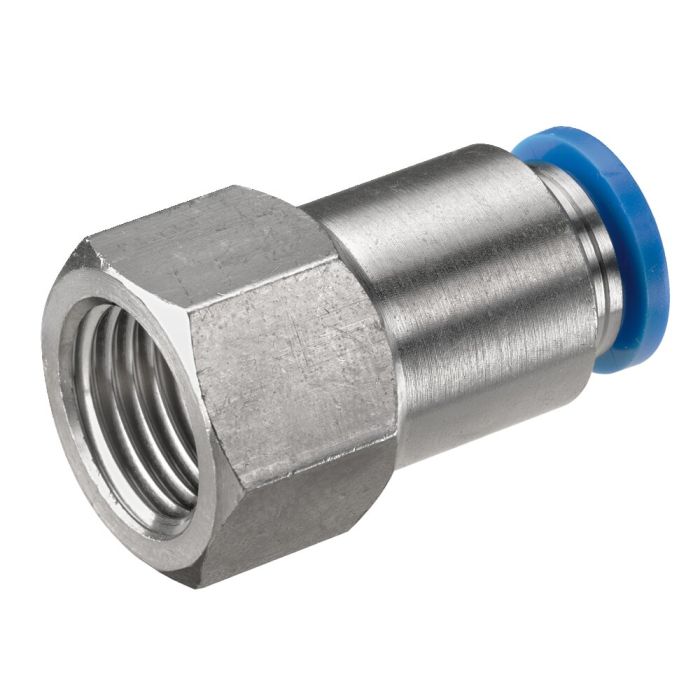

Push-in fittings, pneumatic
For hose diameter 8 mm, fig. No.2, connection G1/8
Order no.
430108
Application:
Screwed connections are used for the pneumatic connection of extension clamping modules or clamping stations.
| Order no. | 430108 |
|---|---|
| Product type | Surface-mounting clamping modules, Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hose, pneumatic Nr. 430140 For the pneumatic connection of extension clamping modules or clamping stations
